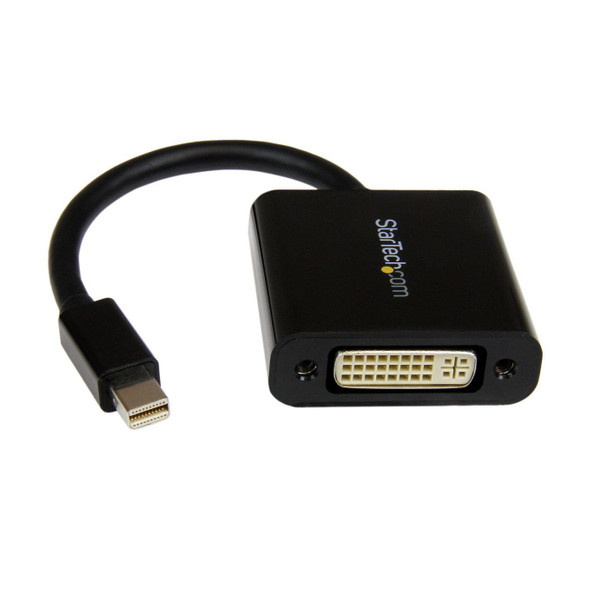

StarTech.com MDP2DVI3 MDP TO DVI ADAPTER MDP2DVI3

Connect a DVI Display to a Mini DisplayPort Video Source

The MDP2DVI3 Mini DisplayPort to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.

MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Simple to use converter makes Mini DisplayPort output backward compatible with your existing DVI display or projector
- Save time with a simple plug-and-play solution; no software or driver installation required

Features



Cable length



0.13 m


Certification



CE, FCC, REACH


Connector 1



Mini DisplayPort


Connector 1 form factor



Straight


Connector 1 gender



Male


Connector 2



DVI-I


Connector 2 form factor



Straight


Connector 2 gender



Female


Converter type



Passive video converter


DisplayPort version



1.2


Maximum resolution



1920 x 1200 Pixels


Product colour



Black


RoHS compliance



Yes


Supported video modes



1080p


Logistics data



Harmonized System (HS) code



84733080


Master (outer) case height



35.5 cm


Master (outer) case length



45.5 cm


Master (outer) case width



27 cm


Products per master (outer) case



200 pc(s)


Operational conditions



Operating relative humidity (H-H)



40 - 85 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



0 - 70 �C


Package dimensions



Depth (package,cm)



18 cm


Gross Weight (Package, kg)



0.04 kg


Height (package,cm)



1 cm


Width (package,cm)



4 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



0.01 kg


Product Depth



18.5 cm


Product Height



1.5 cm


Product Width



4 cm


Sustainability



Sustainability certificates



RoHS, CE


Technical details



Harmonized System (HS) code



84733080


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
