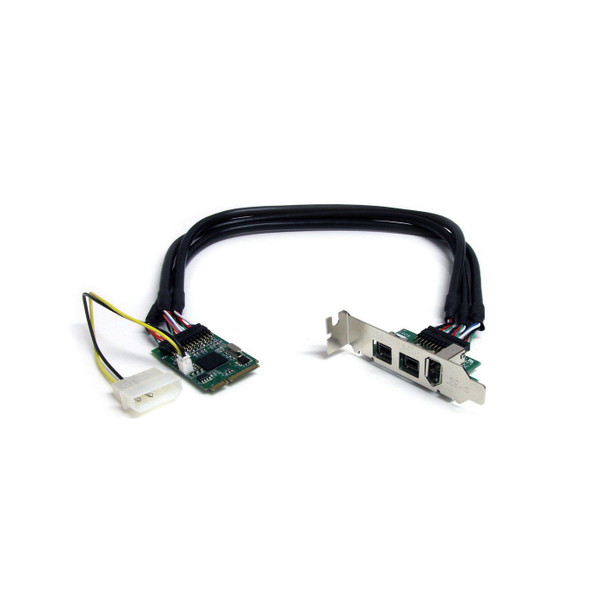

StarTech.com MPEX1394B3 MINI PCIE FIREWIRE CARD MPEX1394B3

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.

Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- A Mini PCI Express form factor designed for use in some small form factor and embedded systems
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Design



Hot-swap



Yes


Internal



Yes


Product colour



Black, Stainless steel


Features



Chipset



Texas Instruments - XIO2213B


Data transfer rate (max)



0.8 Gbit/s


Plug and Play



Yes


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



20.2 cm


Master (outer) case length



66.3 cm


Master (outer) case width



28 cm


Products per master (outer) case



25 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-54 - 150 �C


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



0.198 kg


Height (package,cm)



3.2 cm


Width (package,cm)



17.5 cm


Packaging data



Manual



Yes


Mounting brackets included



Yes


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Expansion card standard



PCIe 1.1


Firewire (IEEE 1394) ports



3


Host interface



PCIe


Output interface



IEEE 1394/Firewire


Product dimensions



Net Weight (Product, kg)



0.05 kg


Product Depth



5 cm


Product Height



0.4 cm


Product Width



3 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Server operating systems supported



Windows Server 2008 R2, Windows Server 2012, Windows Server 2019


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
