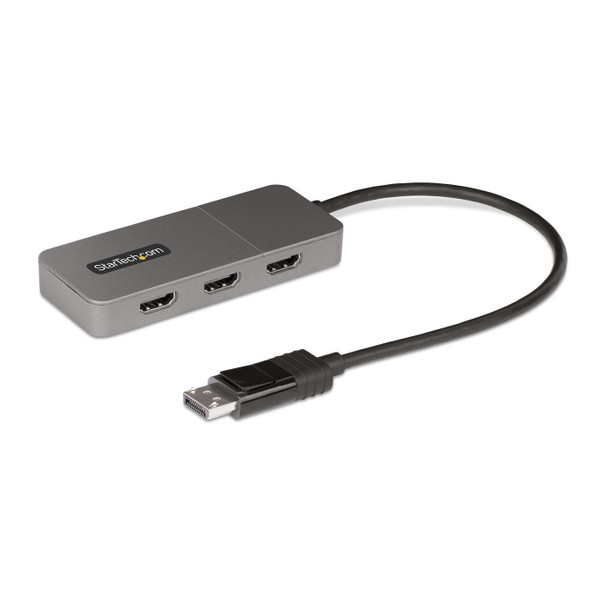

StarTech.com MST14DP123HD StarTech.com 3-Port MST Hub - MST14DP123HD

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitorsConnect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.Drive Triple 4K 60Hz Displays with HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.Host ConnectionMaximum Resolution Output 1Maximum Resolution Output 2Maximum Resolution Output 3Example Host Processor/GraphicsDisplayPort 1.4 with DSC4K 60Hz4K 60Hz4K 60HzIntel 12th Gen Processors & LaterDedicated AMD & Nvidia GPU's that support DSC4K 60Hz4K 60HzN/AIntel 11 th Gen with DSCDisplayPort 1.44K 30Hz4K 30Hz4K 30HzIntel 10 th Gen (Ice Lake Only)Intel 11th Gen Processors & LaterDedicated AMD and Nvidia GPU's that support DP 1.4DisplayPort 1.24K 30Hz4K 30Hz1080pIntel 8 th - 10th Gen Processors & Later*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host deviceMultitasking Made EasyConfigure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.Driverless for Rapid Deployment and Seamless User Setup ExperienceThis MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.The StarTech.com Advantage

Features



Cable length



0.3 m


Chipset



VMM5310, IT6563FN


Connector 1



DisplayPort


Connector 1 gender



Male


Connector 2



3 x HDMI


Connector 2 gender



Female


DisplayPort version



1.4


HDMI version



2.1


Maximum refresh rate



60 Hz


Maximum resolution



4096 x 2160 Pixels


Power source



USB


Product colour



Grey


Refresh rate at maximum resolution



60 Hz


Supported audio channels



7.1


Supported graphics resolutions



1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2560 x 1440, 3840 x 2160, 4096 x 2160


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64


Logistics data



Master (outer) case height



33.1 cm


Master (outer) case length



47.3 cm


Master (outer) case width



44 cm


Products per master (outer) case



70 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Other features



Material



Plastic


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.03 kg


Height (package,cm)



3 cm


Width (package,cm)



14.2 cm


Product dimensions



Net Weight (Product, kg)



0.02 kg


Product Depth



10.5 cm


Product Height



1.4 cm


Product Width



4.3 cm


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
