Startech.Com

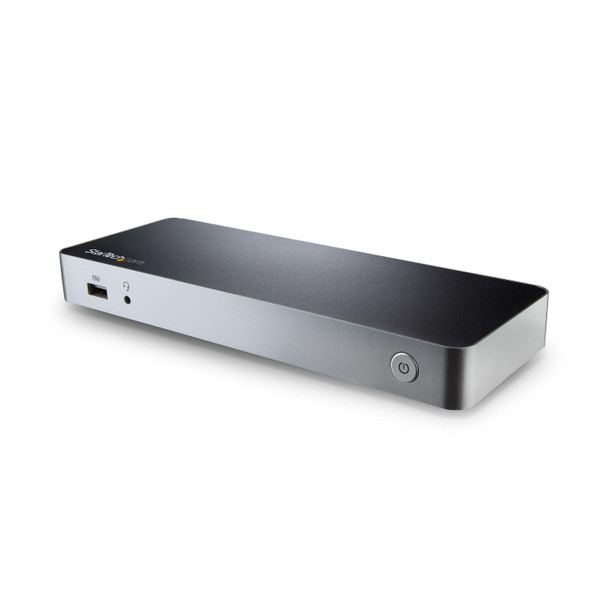

StarTech.com MST30C2HHPDU Dual Monitor Usb C Docking MST30C2HHPDU
- UPC:
- 0000000000000
- MPN:
- MST30C2HHPDU
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
"Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver Setup
Enhance your productivity by turning your Windows USB-C laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required, right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.
Create a Dual-Monitor Workstation
The USB-C dock lets you connect dual monitors with flexible options. Connect to:
2x HDMI?or 2x DVI displays at 1920 x 1200p @ 60Hz
1x HDMI + 1x DVI display
You can also connect a single 4K HDMI display.
Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.
This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.
60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.
Fast, Easy Setup
The?dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.
Connected Device Transparency with the StarTech.com MAC Address Changer Utility
the MST30C2HHPDU, includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the DK30CHHPD, the computer�s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.The MST30C2HHPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Notes:
Ensure your laptop�s drivers, firmware, and operating system are current prior to using the docking station.
Video output capabilities depend on the video card and hardware specifications of the connected laptop.
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop�s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.
Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
The StarTech.com Advantage
- FULL FEATURE USB-C DOCK: USB 3.1 Gen 1 5Gbps type-c docking station with dual monitor 1080p HDMI or DVI, 4x USB-A (incl. 1 front fast charge), 1x USB-C, 60W PD, Gigabit Ethernet & 3.5mm headset audio
- NEW & EXISTING MONITOR SUPPORT: Dual monitor USB-C dock offers flexible setup w/ support for multiple video output combinations: dual HDMI, HDMI + DVI & Dual DVI w/ incl. HDMI to DVI display adapters
- EASY TO SET UP & MANAGE: The plug and play USB-C laptop dock has automatic driver installation, 2x HDMI to DVI adapters, 1m/3.3ft. host cable, front facing power button, MAC Address Changer Utility"
Logistics data
Harmonized System (HS) code
84733020
Master (outer) case height
30.4 cm
Master (outer) case length
33.7 cm
Master (outer) case width
28.7 cm
Products per master (outer) case
6 pc(s)
Network
Auto MDI/MDI-X
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10, 100, 1000
Full duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
5 - 35 �C
Storage temperature (T-T)
-40 - 70 �C
Other features
Chipset
VIA/VLI - VL813, MegaChips - STDP4320, Realtek - RTL8153, C-Media - CM6533, Texas Instruments - TPS65983
Package dimensions
Depth (package,cm)
26.7 cm
Gross Weight (Package, kg)
0.17 kg
Height (package,cm)
9 cm
Width (package,cm)
15.7 cm
Packaging content
AC adapter included
Yes
Cables included
USB Type-C
Quick start guide
Yes
Performance
Card reader integrated
No
Data transfer rate
5 Gbit/s
Housing material
Plastic
Maximum digital resolution
4096 x 2160 Pixels
Plug and Play
Yes
Product colour
Black, Silver
UASP support
Yes
Ports & interfaces
Combo headphone/mic port
Yes
Connectivity technology
Wired
HDMI ports quantity
2
Headphone connectivity
3.5 mm
Headphone outputs
1
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery revision
2.0
USB Power Delivery up to
60 Watt
Power
AC input voltage
100 - 240 V
Compatible power plug types
EU, UK
Input current
1.5 A
Output current
4.5 A
Output voltage
20 V
Power consumption (typical)
100 Watt
Power plug type
Type N
Power source type
AC
Product dimensions
Net Weight (Product, kg)
0.13 kg
Product Depth
22 cm
Product Height
2.4 cm
Product Width
8 cm
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Sustainability
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
View AllClose
