Startech.Com

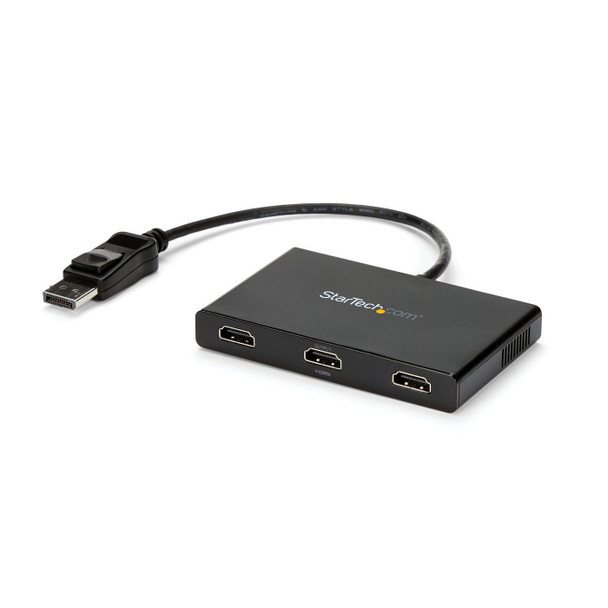

StarTech.com MSTDP123HD MST hub - DisplayPort to MSTDP123HD
(No reviews yet)
Write a Review
- UPC:
- 0065030861526
- MPN:
- MSTDP123HD
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Use this adapter to connect three independent displays to a single DP 1.2 port
This MST hub lets you connect three HDMI monitors to your DisplayPort (DP) 1.2 equipped Windows laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you�re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123HD will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 43%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
90%
2560x1440 @60hz (35%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
92%
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (43%)
1920x1200 @60hz (30%)
1920x1080 @60hz (22%)
95%
3840x2160 @30hz (43%)
3840x2160 @30hz (43%)
None
86%
Examples of Unsupported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (43%)
2560x1600 @60hz (43%)
1920x1200 @60hz (30%)
116%
3840x2160 @30hz (43%)
2560x1600 @60hz (43%)
2560x1440 @60hz (35%)
121%
3840x2160 @30hz (43%)
3840x2160 @30hz (43%)
3840x2160 @30hz (38%)
124%
The StarTech.com Advantage
- Maximize your productivity by connecting up to three independent displays to your computer using the MST Hub
- Connect your DisplayPort computer to HDMI televisions, monitors or projectors, avoiding the hassle of additional HDMI adapters
- Increase external video performance with support for resolutions up to 4K
Features
Cable length
0.19 m
Certification
CE, FCC, REACH
Maximum refresh rate
60 Hz
Maximum resolution
3840 x 2160 Pixels
Plug and Play
Yes
Product colour
Black
RoHS compliance
Yes
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case height
22.4 cm
Master (outer) case length
50.4 cm
Master (outer) case width
33.7 cm
Products per master (outer) case
10 pc(s)
Operational conditions
Operating relative humidity (H-H)
50 - 90 %
Operating temperature (T-T)
0 - 45 �C
Storage temperature (T-T)
-20 - 70 �C
Package dimensions
Depth (package,cm)
24.7 cm
Gross Weight (Package, kg)
0.75 kg
Height (package,cm)
6.7 cm
Width (package,cm)
15.6 cm
Packaging content
AC adapter included
Yes
Manual
Yes
Ports & interfaces
Video out
3x HDMI
Video port type
DisplayPort
Video ports quantity
3
Power
AC input voltage
110 - 240 V
Input current
0.5 A
Input voltage
110 - 240 V
Output current
3 A
Output voltage
5 V
Power consumption (typical)
15 Watt
Product dimensions
Net Weight (Product, kg)
0.505 kg
Product Depth
38.6 cm
Product Height
1.4 cm
Product Width
6.6 cm
Sustainability
Sustainability certificates
RoHS
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
View AllClose
