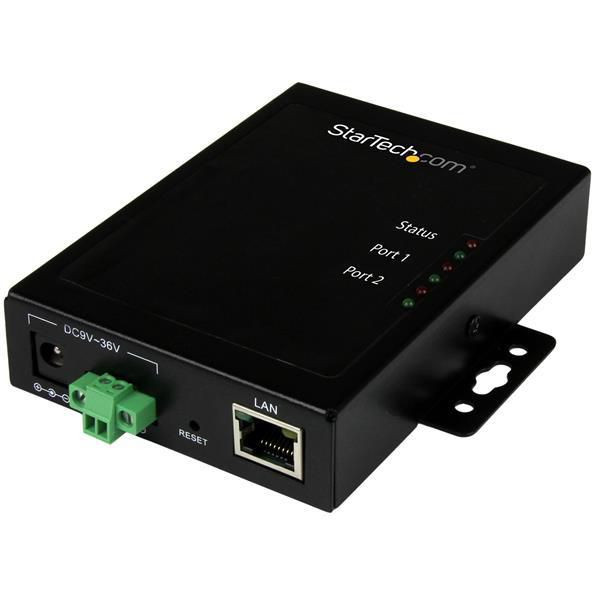

StarTech.com NETRS2322P 2 PORT SERIAL DEVICE SERVER - NETRS2322P

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it�s perfect for factory and industrial settings.

Flexible installation, in a range of environments
If you�re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.

Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.

Backup power keeps your devices connected
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.

Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.

Completely customizable
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows� users can use the provided Virtual COM port software, or the versatile Web-based interface.

The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux�). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.

The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Design



Housing material



Steel


Product colour



Black


Indication



LED indicators



Activity, LAN, Link, Status


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 85 �C


Storage temperature (T-T)



-45 - 130 �C


Package dimensions



Gross Weight (Package, kg)



0.685 kg


Height (package,cm)



5.3 cm


Width (package,cm)



15 cm


Packaging content



AC adapter included



Yes


User guide



Yes


Ports & interfaces



Cabling technology



10/100Base-T(X)


Ethernet LAN (RJ-45) ports



1


Power



Compatible power plug types



AU, EU, UK, US


Input current



1.5 A


Input voltage



100 - 240 V


Output current



3 A


Output voltage



12 V


Power source type



AC


Product dimensions



Net Weight (Product, kg)



0.32 kg


Protocols



Supported network protocols



ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet


Software



Server operating systems supported



Windows Server 2008 R2, Windows Server 2012


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64


Sustainability



Sustainability certificates



RoHS


Technical details



Auto MDI/MDI-X



Yes


Baud rate



460.8 Kbit/s


Certification



CE, FCC


Data bits



7, 8


Electrostatic Discharge (ESD) protection



15 kV


Electrostatic Discharge (ESD) protection (air)



15 kV


Electrostatic Discharge (ESD) protection (contact)



8 kV


Ethernet LAN data rates



10, 100


Flow Control type



No, RTS/CTS, XON/XOFF


Networking standards



IEEE 802.3, IEEE 802.3u


Parity bit



Even, Mark, Odd, Space


Remote management



Yes


Serial interface type



RS-232


Serial ports quantity



2


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



81 x 112 x 23 mm
