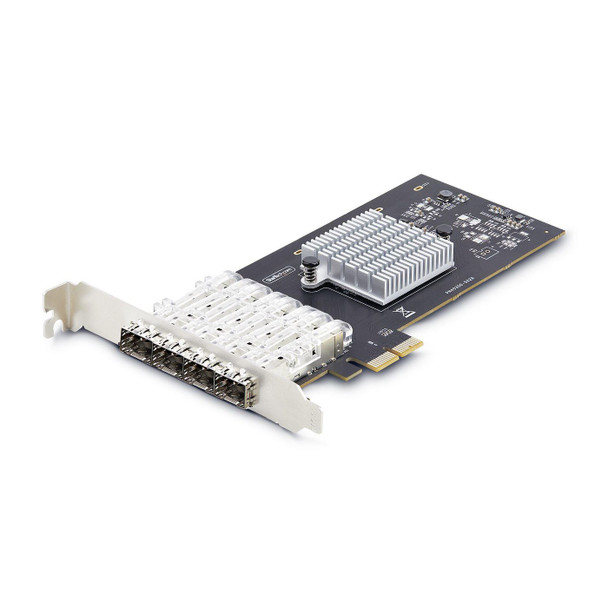

StarTech.com P041GI-NETWORK-CARD StarTech.com 4-Port GbE SFP P041GI-NETWORK-CARD

Add four fiber/copper GbE SFP transceivers or Direct Attach Cables to a workstation or serverAdd up to four 1GbE SFP modules to a PCI Express (PCIe) 2.0 x2 (or higher) slot in an IT Administrator workstation or server backplane, using this 4-Port SFP Network Controller.High Performance Intel ChipsetThe network controller features an Intel I350 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel� VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.Hardware and Operating System CompatibilityThe network interface controller connects to an available x2 PCI Express 2.0 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC).Flexible Network ConnectionsThe card features four SFP slots for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.The StarTech.com Advantage

Design



Component for



PC


Internal



Yes


LED indicators



Speed, Status


Product colour



Black


Logistics data



Master (outer) case height



32 cm


Master (outer) case length



42 cm


Master (outer) case width



44 cm


Products per master (outer) case



40 pc(s)


Network



Auto MDIX IEEE



Yes


Full duplex



Yes


Jumbo frames



9000


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z


Supported network protocols



IPv4, IPv6, TCP/UDP


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



20.7 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.8 cm


Width (package,cm)



14.4 cm


Packaging content



Quick installation guide



Yes


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP


Fiber ports quantity



4


Host interface



PCI Express


Interface



Fiber


PCI version



2.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



16.7 cm


Product Height



1 cm


Product Width



8.3 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
