StarTech.com PCI2S4851050 PCI RS422/485 SERIAL CARD PCI2S4851050

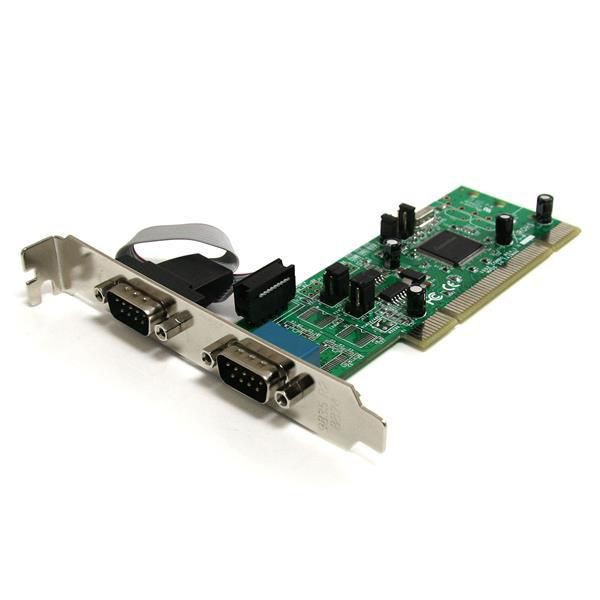

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage
- Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
- A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
- Standard and low profile/half-height bracket included, ensuring easy installation into almost any system

Design



Certification



CE, FCC


Internal



Yes


Features



Baud rate



128 Kbit/s


Chipset



SystemBase -SB16C1052PCI


Data bits



5, 6, 7, 8


FIFO (First In, First Out)



256 B


Flow control support



Yes


Stop bits



1, 1.5, 2


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



-10 - 80 �C


Storage temperature (T-T)



-20 - 100 �C


Other features



Compatible operating systems



Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x


Data transfer rate



0.128 Mbit/s


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.152 kg


Height (package,cm)



3.2 cm


Width (package,cm)



14.5 cm


Packaging data



Drivers included



Yes


Manual



Yes


Ports & interfaces



Host interface



PCI/PCI-X


Output interface



Serial


Serial interface type



RS-422, RS-485


Serial ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.04 kg


Product Depth



12 cm


Product Height



4.5 cm


Product Width



1.5 cm


System requirements



Server operating systems supported



Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
