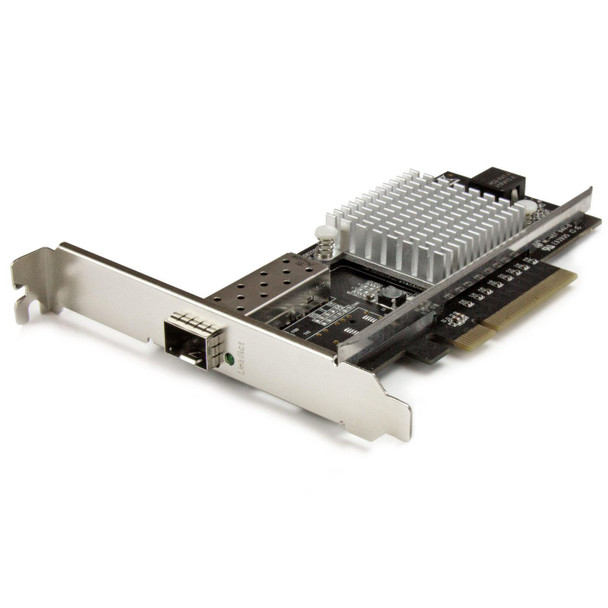

StarTech.com PEX10000SFPI 10G OPEN SFP+ NIC - PCIE PEX10000SFPI

This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Increase your network speed
Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances.

The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM.

In addition, StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities
The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.

The PEX10000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Design



Certification



CE, FCC, REACH


Chipset



Intel® 82599


Component for



PC


Internal



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



30.9 cm


Master (outer) case length



58.5 cm


Master (outer) case width



35.9 cm


Products per master (outer) case



80 pc(s)


Network



Fiber ethernet cabling technology



10GBASE-LR, 10GBASE-LRM, 10GBASE-SR


Full duplex



Yes


Jumbo frames



15000


Jumbo frames support



Yes


Maximum data transfer rate



10000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x


VLAN tagging



Yes


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 50 °C


Storage temperature (T-T)



-20 - 60 °C


Other features



Flow control support



Yes


Quick start guide



Yes


Package dimensions



Depth (package,cm)



17.2 cm


Gross Weight (Package, kg)



0.178 kg


Height (package,cm)



3.2 cm


Width (package,cm)



14.2 cm


Packaging data



Low-profile bracket



Yes


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP+


Fiber ports quantity



1


Host interface



PCI Express


Interface



Fiber


PCI version



2.0


Product dimensions



Net Weight (Product, kg)



0.102 kg


Product Depth



13.5 cm


Product Height



12 cm


Product Width



1.8 cm


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
