StarTech.com PEX1000MMSC2 PCI EXPRESS GBE MM SC FIBER PEX1000MMSC2

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

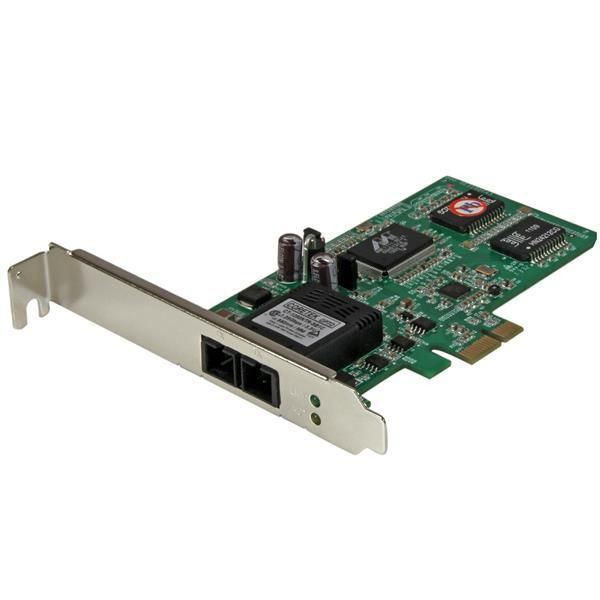

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Fiber network infrastructure is reliable and secure, with no electromagnetic interference and less data corruption, through a direct fiber-to-desktop connection
- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design

Design



Chipset



RTL8168E


Component for



PC


Internal



Yes


LED indicators



Activity, Link


Recommended usage



PC


RoHS compliance



Yes


Logistics data



Harmonized System (HS) code



85176990


Network



Fiber ethernet cabling technology



1000BASE?SX


Full duplex



Yes


Jumbo frames support



Yes


LAN controller



Realtek RTL8168E


Maximum data transfer rate



2000 Mbit/s


Maximum operating distance



550 m


Networking standards



IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-20 - 70 �C


Other features



Buffer size



48 KB


Chipset



RTL8168E


Harmonized System (HS) code



85176990


Manual



Yes


Power supply



3.2 Watt


Package dimensions



Depth (package,cm)



21.6 cm


Gross Weight (Package, kg)



0.2 kg


Height (package,cm)



5.1 cm


Width (package,cm)



17.9 cm


Packaging content



Manual



Yes


Packaging data



Manual



Yes


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SC


Host interface



PCI Express


Interface



Ethernet / Fiber


Product dimensions



Net Weight (Product, kg)



0.19 kg


Product Depth



12 cm


Product Height



1.8 cm


Product Width



11.8 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
