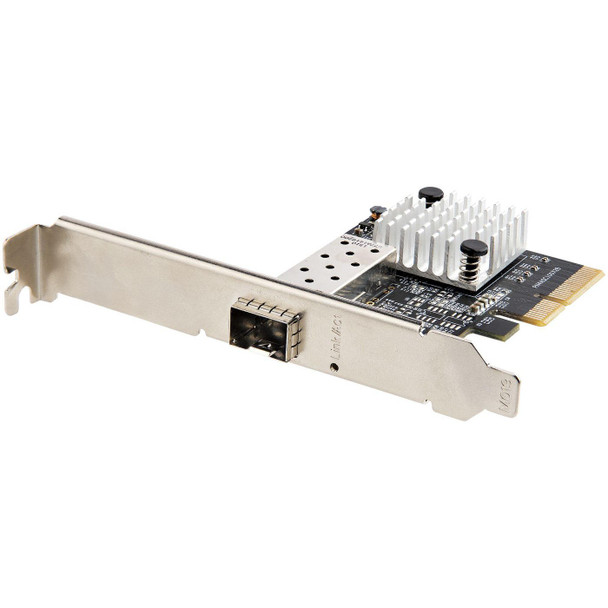

StarTech.com PEX10GSFP 10G Pcie Sfp+ Card - Single PEX10GSFP

PCI Express SFP+ Card | 10 Gbps | Open SFP+ Slot | Fiber, Copper & DAC | PCIe 3.0 x4Increase your network speedThis PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps which improve speeds and reduces load times.Scalable network connectionFeaturing an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.Enhance your existing hardwareThe 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.The PEX10GSFP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Design



Chipset



Aquantia AQC100S


Component for



PC


Internal



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



23.5 cm


Master (outer) case length



35.5 cm


Master (outer) case width



31 cm


Products per master (outer) case



20 pc(s)


Network



Fiber mode structure



Multi-mode, Single-mode


Full duplex



Yes


Jumbo frames



9000


Jumbo frames support



Yes


Maximum data transfer rate



20000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x


VLAN tagging



Yes


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Other features



Flow control support



Yes


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.5 cm


Width (package,cm)



21 cm


Packaging content



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SFP+


Host interface



PCI Express


Interface



Fiber


PCI version



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



9.4 cm


Product Height



12.1 cm


Product Width



1.8 cm


Sustainability



Sustainability certificates



CE, RoHS


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
