Startech.Com

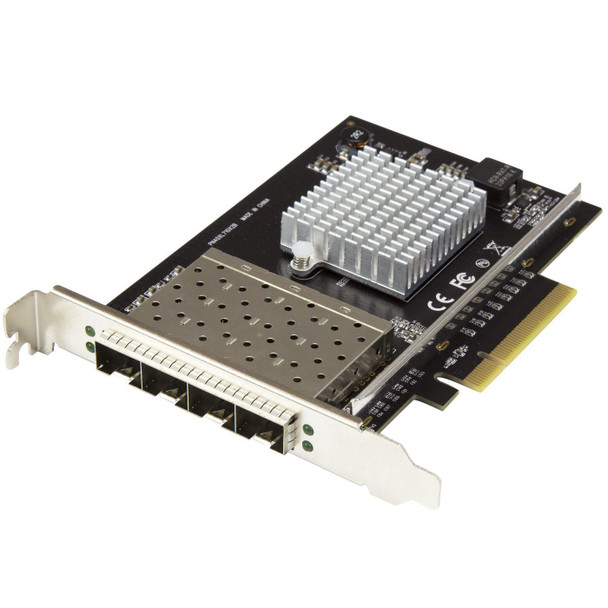

StarTech.com PEX10GSFP4I PCIE CARD 4 PORT SFP+ PEX10GSFP4I
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- PEX10GSFP4I
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Add four 10 Gigabit fiber Ethernet ports to your server or workstation, using the SFP+ transceiver of your choice
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Add redundant connections in zero-downtime environments
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
Increase your network speed
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.
The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The SFP+ server network card features the Intel XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.
The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
- TECH SPECS: 10 Gbps per port
- 4 SFP+ Ports, MSA Compliant
Design
Certification
CE, FCC, REACH
Chipset
Intel� XL710
Internal
Yes
LED indicators
Activity, Link
Product colour
Black
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case height
36 cm
Master (outer) case length
58 cm
Master (outer) case width
30.5 cm
Products per master (outer) case
80 pc(s)
Network
Full duplex
Yes
Jumbo frames
9000
Jumbo frames support
Yes
Maximum data transfer rate
20000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ae, IEEE 802.3x
VLAN tagging
Yes
Operational conditions
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
5 - 50 �C
Storage temperature (T-T)
-20 - 60 �C
Other features
Flow control support
Yes
Quick start guide
Yes
Package dimensions
Depth (package,cm)
17 cm
Gross Weight (Package, kg)
0.182 kg
Height (package,cm)
3 cm
Width (package,cm)
14.2 cm
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
SFP+
Fiber ports quantity
4
Host interface
PCI Express
Interface
Fiber
PCI version
3.0
Product dimensions
Net Weight (Product, kg)
0.122 kg
Product Depth
13.9 cm
Product Height
10 cm
Product Width
1.5 cm
Sustainability
Sustainability certificates
RoHS
System requirements
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
