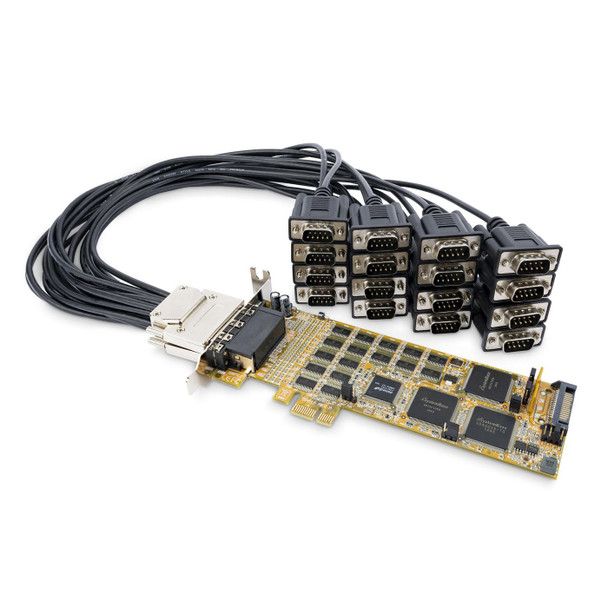

StarTech.com PEX16S550LP PCI EXPRESS CARD 16-PORT PEX16S550LP

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slotThis PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It's the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.Add 16 RS232 ports through one PCIe slotYou can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.High-speed serial communicationThe PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.Easy installationThe serial card is easy to install and configure, and compatible with a broad range of Windows� and Linux� operating systems. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket making it compatible with both full profile and low profile PC chassis slots.The PEX16S550LP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Design



Internal



Yes


Product colour



Yellow


Features



Baud rate



921.6 Kbit/s


Chipset



ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058


Data bits



5, 6, 7, 8


Stop bits



1, 1.5, 2


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



32.9 cm


Master (outer) case length



52 cm


Master (outer) case width



39.7 cm


Products per master (outer) case



14 pc(s)


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-20 - 75 �C


Other features



Electrostatic Discharge (ESD) protection



15 kV


Package dimensions



Depth (package,cm)



29.3 cm


Gross Weight (Package, kg)



1.2 kg


Height (package,cm)



7 cm


Width (package,cm)



19.2 cm


Packaging data



Cables included



RS-232


Drivers included



Yes


Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Expansion card form factor



Low-profile


Expansion card standard



PCIe 1.1


Host interface



PCIe


Internal SATA ports quantity



1


Output interface



Serial


Serial interface type



RS-232


Serial ports quantity



16


Product dimensions



Net Weight (Product, kg)



0.07 kg


Product Depth



16.8 cm


Product Height



2.2 cm


Product Width



6.8 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



CE, RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
