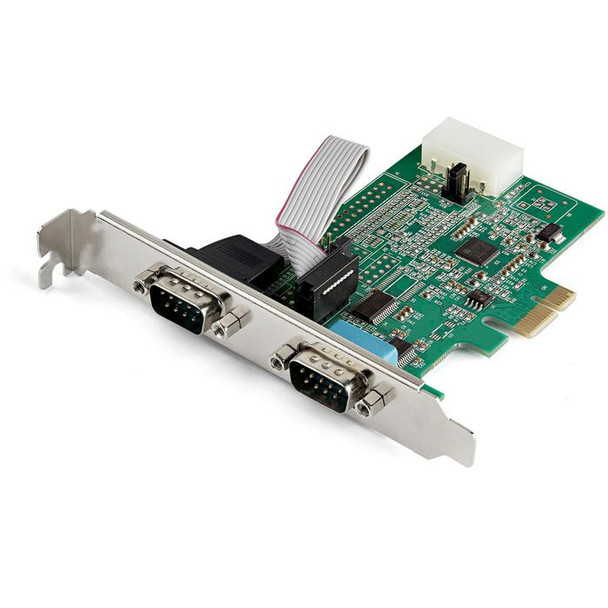

StarTech.com PEX2S953 2-Port Pci Express Rs232 PEX2S953

PCI Express to Serial Adapter | 921.6Kbps | Windows� and Linux� CompatibleThis multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 .Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:� Industry standard 16950 UART compatible� Supports max baud rate of up-to 921.6Kbps� Provides 5/12V power output on Pin 9 when external power is connected� 256-byte depth FIFO cache per transmitter and receiver� Supports 9, 8, 7, 6, 5 data bits (one per port)� Asix AX99100 chipset� Base PCI Express 1.1 compliant� Low and full-profile brackets includedThe Choice of IT Pros Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage

Design



Internal



Yes


Mean time between failures (MTBF)



222366 Hour


Product colour



Green


Features



Baud rate



921.6 Kbit/s


Chipset



Asix AX99100


Data bits



5, 6, 7, 8, 9


FIFO (First In, First Out)



256 B


Flow Control type



N, No, RTS/CTS, XON/XOFF


Parity bit



Even, Mark, N, No, Odd, Space


Stop bits



1, 1.5, 2


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



30.6 cm


Master (outer) case length



34.5 cm


Master (outer) case width



68.5 cm


Products per master (outer) case



75 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



-10 - 80 �C


Storage temperature (T-T)



-20 - 100 �C


Package dimensions



Depth (package,cm)



14.2 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3 cm


Width (package,cm)



17 cm


Packaging data



Quantity



1


Quick installation guide



Yes


Ports & interfaces



Expansion card standard



PCIe 1.1


Host interface



PCIe


Output interface



Serial


Serial interface type



RS-232


Serial ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



7.5 cm


Product Height



1.5 cm


Product Width



6.3 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
