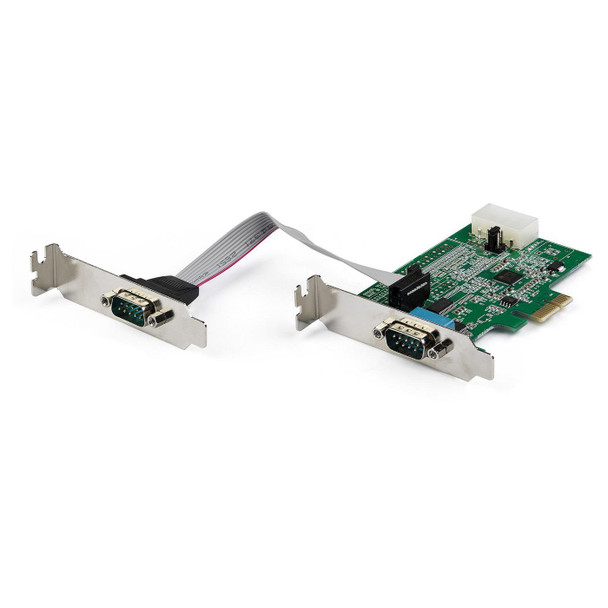

StarTech.com PEX2S953LP 2-Port Pci Express Rs232 PEX2S953LP

PCI Express to Serial Adapter | 921.4Kbps | Windows and Linux Compatible

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:
Compatible with industry standard 16950 UART

Supports max baud rate of up-to 921.4Kbps

Provides 5/12V power output on Pin 9 when external power is connected

256-byte depth FIFO per transmitter and receiver

Supports 9, 8, 7, 6, 5 data bits

Asix AX99100 chipset

PCI Express 1.1 compliant

PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
- LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux

Design



Certification



CE, FCC


Internal



Yes


Mean time between failures (MTBF)



222366 Hour


Features



Baud rate



921.6 Kbit/s


Chipset



Asix AX99100


Data bits



5, 6, 7, 8, 9


FIFO (First In, First Out)



256 B


Flow Control type



N, No, RTS/CTS, XON/XOFF


Parity bit



Even, Mark, N, No, Odd, Space


Stop bits



1, 1.5, 2


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



31.7 cm


Master (outer) case length



69 cm


Master (outer) case width



35.5 cm


Products per master (outer) case



75 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



-10 - 80 �C


Storage temperature (T-T)



-20 - 100 �C


Package dimensions



Depth (package,cm)



17.2 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.2 cm


Width (package,cm)



14.2 cm


Packaging data



Manual



Yes


Mounting brackets included



Yes


Quantity



1


Ports & interfaces



Expansion card standard



PCIe 1.1


Host interface



Mini PCI Express


Output interface



Serial


Peripheral (Molex) power connectors (4-pin)



1


Serial interface type



RS-232


Serial ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



9.8 cm


Product Height



1.8 cm


Product Width



6.7 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
