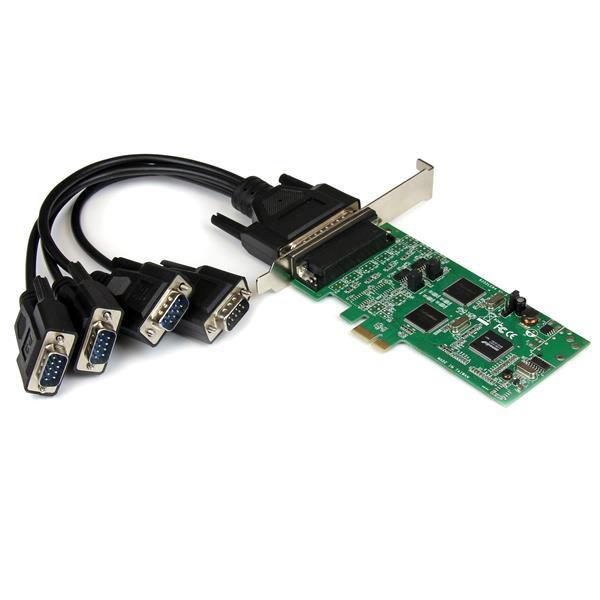

StarTech.com PEX4S232485 4 PORT PCIE SERIAL CARD PEX4S232485

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.

This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors
- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot

Design



Internal



Yes


Features



Chipset



SystemBase SB16C1052PCI


FIFO (First In, First Out)



256 B


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



0 - 100 �C


Storage temperature (T-T)



0 - 150 �C


Other features



Connectivity technology



Wired


Data transfer rate



0.4608 Mbit/s


Package dimensions



Depth (package,cm)



21 cm


Gross Weight (Package, kg)



0.39 kg


Height (package,cm)



4.1 cm


Width (package,cm)



14.6 cm


Packaging data



User guide



Yes


Ports & interfaces



Host interface



PCIe


Output interface



Serial


Serial interface type



RS-232/422/485


Serial ports quantity



4


Product dimensions



Net Weight (Product, kg)



0.067 kg


Product Depth



7 cm


Product Height



2 cm


Product Width



12.5 cm


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
