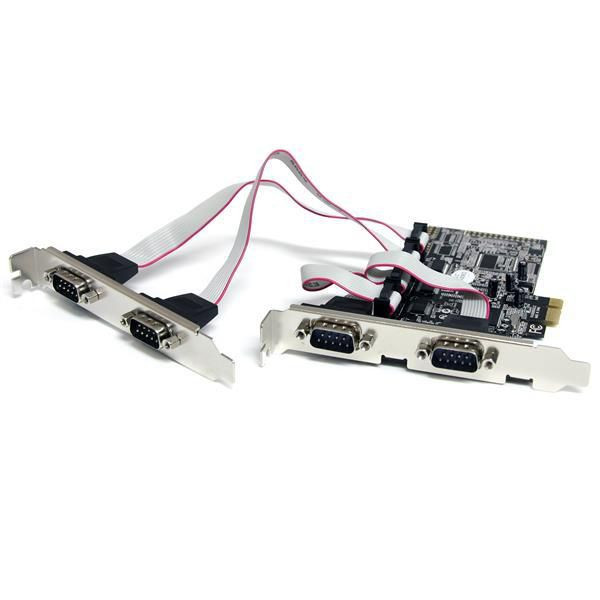

StarTech.com PEX4S553 PCIE SERIAL ADAPTER CARD PEX4S553

Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
- Standard and low profile/half-height brackets included to ensure fitment in any system

Design



Certification



CE, FCC, REACH


Internal



Yes


Mean time between failures (MTBF)



26280 Hour


RoHS compliance



Yes


Features



Baud rate



128 Kbit/s


Chipset



ASIX - MCS9904CV-AA


Data bits



5, 6, 7, 8


FIFO (First In, First Out)



256 B


Harmonized System (HS) code



84733020


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating relative humidity (H-H)



5 - 85 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Other features



Compatible operating systems



Windows XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit), Windows Server 2003(32/64 bit), 2008 R2, Linux


Data transfer rate



0.128 Mbit/s


Mac compatibility



No


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.25 kg


Height (package,cm)



3 cm


Width (package,cm)



14.1 cm


Packaging data



Drivers included



Yes


Manual



Yes


Mounting brackets included



Yes


Quantity



1


Ports & interfaces



Host interface



PCIe


Output interface



Serial


Serial interface type



RS-232


Serial ports quantity



4


Product dimensions



Net Weight (Product, kg)



0.06 kg


Product Depth



12 cm


Product Height



1.9 cm


Product Width



13 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Other operating systems supported



Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
