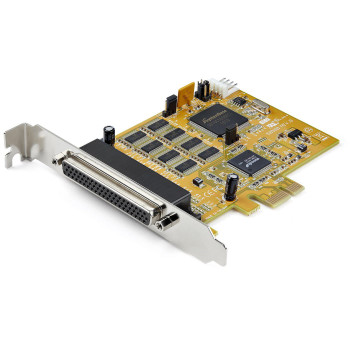

StarTech.com PEX8S1050LP 8-Port Pci Express Rs232 PEX8S1050LP

Low Profile Serial Card | Full Profile Brackets Incl | 921.4Kbps | Windows and Linux

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.Connect your Peripherals with 8 Serial PortsThe PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.Versatile UseThe low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.PEX8S1050LP?is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer
- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
- COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers

Design



Certification



CE, FCC, TAA


Internal



Yes


Product colour



Yellow


Features



Baud rate



926.1 Kbit/s


Chipset



ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI


Data bits



5, 6, 7, 8


FIFO (First In, First Out)



256 B


Flow control support



Yes


Flow Control type



RTS/CTS, XON/XOFF


Parity bit



Even, N, No, Odd


Stop bits



1, 1.5, 2


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



31.5 cm


Master (outer) case length



51 cm


Master (outer) case width



40 cm


Products per master (outer) case



14 pc(s)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-20 - 85 �C


Package dimensions



Depth (package,cm)



29 cm


Gross Weight (Package, kg)



0.16 kg


Height (package,cm)



7 cm


Width (package,cm)



19 cm


Packaging data



Cables included



Serial


Mounting brackets included



Yes


Quantity



1


User guide



Yes


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Host interface



PCIe


Output interface



Serial


Serial interface type



RS-232


Serial ports quantity



8


Product dimensions



Net Weight (Product, kg)



0.12 kg


Product Depth



14.5 cm


Product Height



6 cm


Product Width



2.2 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
