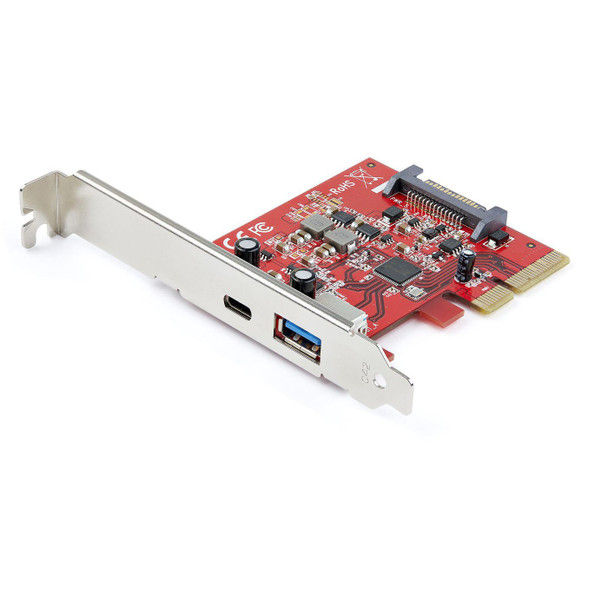

StarTech.com PEXUSB311AC3 2-Port 10Gbps Usb-A & Usb-C PEXUSB311AC3

PCIe 3.0 | USB Type-C & USB Type-A | 5V 3A/15W via USB-C | 5V 0.9A/4.5W via USB-A | UASP

This USB 3.1 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.1 Gen 2 (also known as USB 3.2 Gen 2x1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.USB 3.1 Gen 2 PerformanceBy adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices.With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.Compatible with Older USB DevicesConnecting older peripherals isn't a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.Easy InstallationThe USB 3.1 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.Faster Transfer Speeds with UASPThe card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.1 Gen 2 at peak performance.At the same peak in testing, UASP also shows an 80% reduction in required processor resources.The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C
- POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
- MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives

Design



Internal



Yes


Mean time between failures (MTBF)



2684396 Hour


Product colour



Red


Features



Chipset



ASMedia - ASM3142


Data transfer rate (max)



10 Gbit/s


UASP support



Yes


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



50 cm


Master (outer) case length



36.5 cm


Master (outer) case width



37 cm


Products per master (outer) case



60 pc(s)


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 50 �C


Storage temperature (T-T)



-20 - 85 �C


Package dimensions



Depth (package,cm)



14.2 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3 cm


Width (package,cm)



17 cm


Packaging data



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Expansion card standard



PCIe 3.0


Host interface



PCIe


Output interface



USB 3.2 Gen 2 (3.1 Gen 2)


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



12 cm


Product Height



1.9 cm


Product Width



8.1 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Server operating systems supported



Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
