Startech.Com

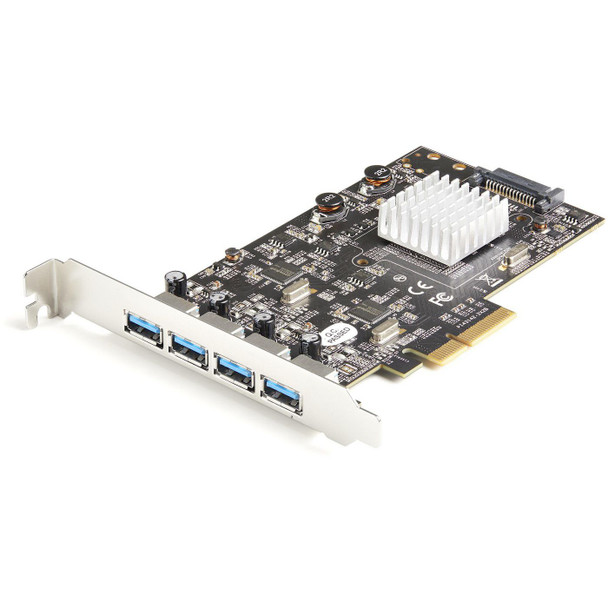

StarTech.com PEXUSB314A2V2 4-Port Usb Pcie Card - 10Gbps PEXUSB314A2V2
- UPC:
- 0065030887410
- MPN:
- PEXUSB314A2V2
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-A
This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding four SuperSpeed USB-A (10Gbps) ports. The card features dual ASM3142 controllers with up to 20 Gbps of total bandwidth shared across all 4 ports.
Add Four 10 Gbps USB Type-A Ports to Your Desktop Computer
The controller card enables you to connect four USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).
SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance
The USB 3.2 Gen 2 card features dual ASMedia ASM3142 host controllers that utilizes x4 lanes of the PCIe 2.0 bus, making the card capable of speeds up to 10 Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller cards support Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.
Wide Installation Compatibility
This add-on card includes a full-profile installation bracket ensuring you can install it into full-profile PCIe 2.0 x4 slots. For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices
PEXUSB314A2V2 is backed by a StarTech.com lifetime warranty and free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB PCIe card with 4x USB-A ports up to SuperSpeed 10Gbps per port; Dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; USB 3.1 Gen 2/USB 3.2 Gen 2x1; Upgraded version of our popular USB card PEXUSB314A2V
- MAXIMIZED USB PERFORMANCE: Multiple INs support for max bandwidth when using mixed-speed devices; USB Attached SCSI Protocol (UASP) for storage device, like SSDs, HDDs, NVMe drives and thumb drives
- POWER: USB PCI Express expansion card with SATA power header has the option to provide supplemental power to the USB ports (if motherboard power is insufficient) providing up to 4.5W (5V@0.9A) per USB-A port
Design
Internal
Yes
Mean time between failures (MTBF)
40000 Hour
Product colour
Black, Metallic
Features
Chipset
ASMedia - ASM3142, ASMedia - ASM1812
Data transfer rate (max)
10 Gbit/s
UASP support
Yes
Logistics data
Harmonized System (HS) code
84733020
Master (outer) case height
32 cm
Master (outer) case length
42 cm
Master (outer) case width
44 cm
Products per master (outer) case
20 pc(s)
Operational conditions
Operating relative humidity (H-H)
20 - 80 %
Operating temperature (T-T)
5 - 50 �C
Storage temperature (T-T)
-20 - 60 �C
Package dimensions
Depth (package,cm)
14.4 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
3.8 cm
Width (package,cm)
20.7 cm
Packaging data
Mounting brackets included
Yes
Quick installation guide
Yes
Ports & interfaces
Expansion card standard
PCIe 3.0
Host interface
PCIe
Internal SATA ports quantity
1
Output interface
USB 3.2 Gen 2 (3.1 Gen 2)
SATA power connector type
SATA 15-pin
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Power
Output voltage
5 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
12 cm
Product Height
1.9 cm
Product Width
15 cm
System requirements
Linux operating systems supported
Yes
Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Technical details
Sustainability certificates
CE, RoHS
Sustainability compliance
Yes
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
View AllClose
