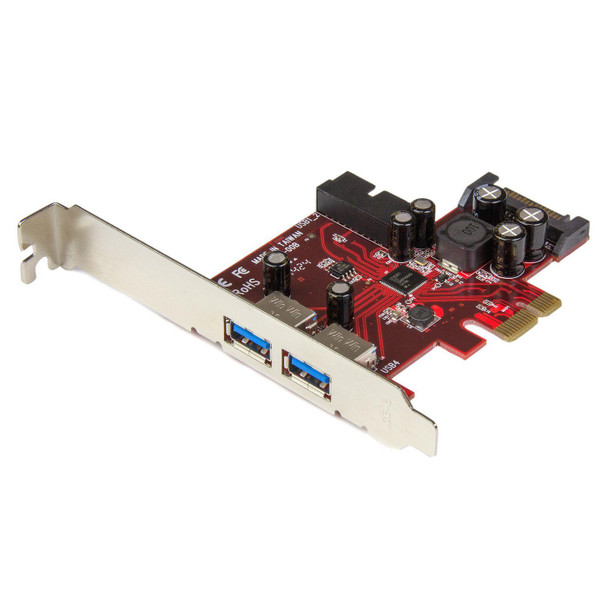

StarTech.com PEXUSB3S2EI 4 PORT PCIE USB 3.0 CARD PEXUSB3S2EI

Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headersThis PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal (IDC) USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices.Flexible and convenient port designWith extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.Simple installation and supports older devicesThe USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows� 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.Effective USB 3.0 performance enhanced by UASPThis high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.The PEXUSB3S2EI is ruggedly built for reliable USB 3.0 device connections and is backed by a StarTech.com 2-year warranty and free lifetime technical support.Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel� Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.The StarTech.com Advantage

Design



Certification



CE, FCC


Internal



Yes


Maximum cable length



3 m


Mean time between failures (MTBF)



1920042 Hour


Product colour



Metallic, Red


RoHS compliance



Yes


Features



Chipset



Renesas / NEC - �PD720201


Data transfer rate (max)



5 Gbit/s


Harmonized System (HS) code



84733020


UASP support



Yes


Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



31.6 cm


Master (outer) case length



49.5 cm


Master (outer) case width



38.3 cm


Products per master (outer) case



60 pc(s)


Operational conditions



Operating relative humidity (H-H)



20 - 80 %


Operating temperature (T-T)



5 - 50 �C


Storage temperature (T-T)



-25 - 70 �C


Other features



Maximum operating distance



3 m


Package dimensions



Depth (package,cm)



14.3 cm


Gross Weight (Package, kg)



0.14 kg


Height (package,cm)



3.3 cm


Width (package,cm)



17.4 cm


Packaging data



Drivers included



Yes


Manual



Yes


Mounting brackets included



Yes


Ports & interfaces



Expansion card form factor



Full-height / Low-profile


Expansion card standard



PCI 2.0


Host interface



PCIe


Internal SATA ports quantity



1


Output interface



SATA, USB 3.2 Gen 1 (3.1 Gen 1)


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.04 kg


Product Depth



9.2 cm


Product Height



12 cm


Product Width



1.8 cm


System requirements



Linux operating systems supported



Yes


Server operating systems supported



Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Technical details



Sustainability certificates



CE, RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
