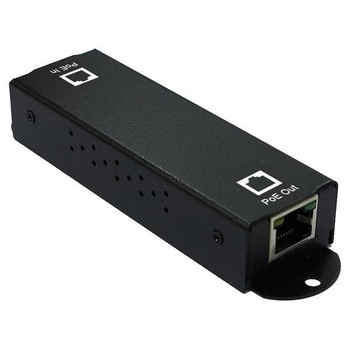

StarTech.com POEEXT2GAT 2 PORT GIGABIT POE+ EXTENDER POEEXT2GAT

This 2-port Gigabit PoE+ extender spans your Power over Ethernet (PoE) devices over longer distances, letting you double the 100 m limitation of a traditional PoE infrastructure.

Now you can connect two Gigabit PoE devices up to a maximum of 200 m away, so it�s easy to install a remote IP camera or access point where you need it. Plus, you can daisy-chain the extender for more scalability.

Unrestricted PoE+ range and convenience
Need more distance? This convenient two-port PoE+ repeater maximizes range and flexibility by extending your PoE connections by an extra 100 m (330 ft.), while providing 23-watt power output to two compatible devices. (The power output is shared between each PoE output port).

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered devices (PD) and you�re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).

Daisy chain for longer distance and more flexibility
Still need more distance? If an extra 100 m isn�t enough, this full-featured PoE extender offers daisy-chain capability.

You can easily connect four extenders together, letting you install two PoE+ PDs up to 500 m (1640 ft.) away. It�s perfect for business, education, and retail environments. (Output wattage is dependent on the number of daisy-chained extenders used, and the number of connected PoE devices).

Convenient installation options and durable construction
Get up and running quickly. This 2-port Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

With its rugged metal housing and built-in ESD and surge protection, the PoE+ extender gives you reliable performance with little worry of downtime or failure.

The POEEXT2GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Design



Certification



CE, FCC


Housing material



Steel


LED indicators



Activity, Link, PoE


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100/1000Base-T(X)


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



16.9 cm


Gross Weight (Package, kg)



0.367 kg


Height (package,cm)



9.9 cm


Width (package,cm)



12.3 cm


Packaging content



Quick start guide



Yes


Performance



Auto MDIX IEEE



Yes


Auto-negotiation



Yes


Data transfer rate



2000 Mbit/s


Duplex system



Full, Half


Flow control support



Yes


Jumbo frames support



No


Maximum transfer distance



100 m


Mean time between failures (MTBF)



50000 Hour


Plug and Play



Yes


Type



Network transmitter


Ports & interfaces



RJ-45 ports quantity (receiver)



1


RJ-45 ports quantity (transmitter)



2


Power



Output voltage



56 V


Power consumption (max)



3 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.239 kg


Product Depth



14 cm


Product Height



2.7 cm


Product Width



7.7 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
