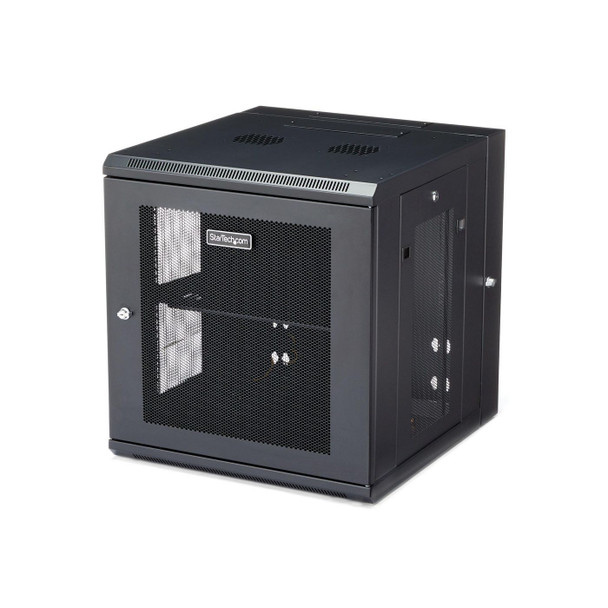

StarTech.com RK1224WALHM 12U SERVER RACK ENCLOSURE RK1224WALHM

Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access

This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2.4 to 19.7 in. to provide a robust storage solution for your rack-mount equipment.

To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

Easily access your servers and network equipment

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.

The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.

For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack�s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The RK1224WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- EASY ACCESS: 24" deep wall mount network cabinet for IT gear e.g. Cisco 3850 & 2960 series switches. 180� hinged design w/ lockable access to rear of mounted devices. Removable doors & side panels
- ACCESORIES INCLUDED: IT Data Rack includes complete set of accessories: a shelf (CABSHELFV1U), roll of hook-and-loop fastener, 50 cage nuts and screws, & 2 pairs of keys for the front & side panels
- STURDY CONSTRUCTION: 4 Post 19" 12U EIA/ECA-310-E enclosed design, 200lb weight cap, 24" deep with max. 20" mounting depth, removable sides, locking reversible door, dual top cable hole, optional fans

Features



Adjustable mounting rails



Yes


Back door construction



Steel


Back door key lock



Yes


Cable management



Yes


Castor wheels



No


Certification



CE, REACH


Frame type



Closed


Front door construction



Steel


Front door key lock



Yes


Key lock



Yes


Maximum weight capacity



90 kg


Mounting hole shape



Square


Product colour



Black


Product design



4-post


Rack capacity



12U


Rack rail thickness



2 mm


Removable front door



No


Removable side panels



Yes


Side panel construction



Steel


Side panels included



Yes


Type



Wall mounted rack


Logistics data



Harmonized System (HS) code



85381000


Master (outer) case height



72 cm


Master (outer) case length



72 cm


Master (outer) case width



67 cm


Products per master (outer) case



1 pc(s)


Other features



Compliance industry standards



EIA/ECA-310-E


Package dimensions



Depth (package,cm)



67.5 cm


Gross Weight (Package, kg)



41.2 kg


Height (package,cm)



72 cm


Width (package,cm)



72.2 cm


Packaging data



Manual



Yes


Number of nuts



50


Number of screws



50


Nuts included



Yes


Screws included



Yes


Product dimensions



Net Weight (Product, kg)



37.4 kg


Product Depth



65.5 cm


Product Height



64 cm


Product Width



61 cm


Technical details



Sustainability certificates



CE, RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Inner depth



65.2 cm


Inner height



54 cm


Inner width



59.5 cm


Mounting depth (max)



50 cm


Mounting depth (min)



6 cm
