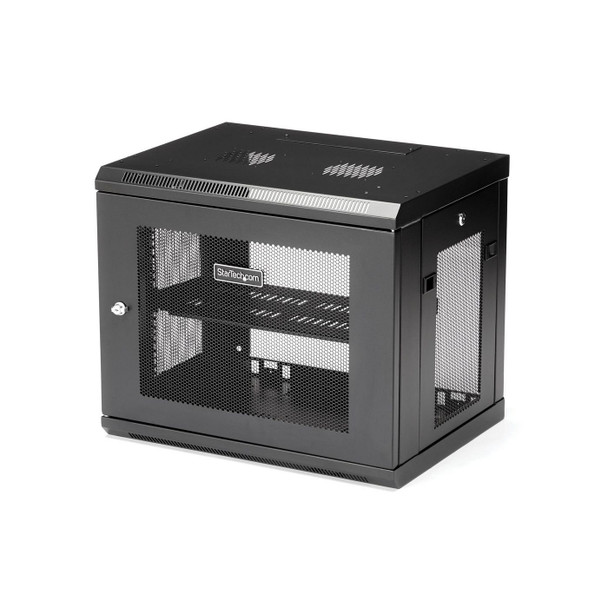

StarTech.com RK9WALM SERVER RACK 9U F. WALL RK9WALM

Use this wall mount network cabinet to mount your equipment to the wall

This 9U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features an adjustable mounting depth from 6 to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.

Easily install your servers and network equipment

The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you�ll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack�s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The RK9WALM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 9U 2 POST SECURE RACK: Wall mount network cabinet enclosure is designed to protect critical network/computer/electronics equipment/switches from damage & is lockable to prevent unauthorized access
- DURABLE AND ADJUSTABLE: This SPCC cold rolled steel locking electronics/data cabinet holds up to 200 lb (90 kg) and can support depths between 6in and 14.6in & comes with a movable vented 1U shelf
- SPECS: 9U 19" Enclosed cabinet

Features



Adjustable mounting rails



Yes


Assembly required



No


Back door construction



Steel


Cable management



Yes


Certification



CE, REACH


Frame type



Closed


Front door construction



Steel


Front door key lock



Yes


Key lock



Yes


Material



Steel


Maximum weight capacity



90 kg


Mounting hole shape



Square


Product colour



Black


Product design



2-post


Rack capacity



9U


Removable front door



Yes


Type



Wall mounted rack


Logistics data



Harmonized System (HS) code



85381000


Master (outer) case height



58 cm


Master (outer) case length



53 cm


Master (outer) case width



67 cm


Products per master (outer) case



1 pc(s)


Other features



Compliance industry standards



EIA/ECA-310-E


Package dimensions



Depth (package,cm)



53 cm


Gross Weight (Package, kg)



20.8 kg


Height (package,cm)



58 cm


Width (package,cm)



67 cm


Packaging data



Manual



Yes


Number of nuts



36


Number of screws



36


Nuts included



Yes


Screws included



Yes


Wall mounting kit



Yes


Product dimensions



Net Weight (Product, kg)



17.7 kg


Product Depth



45 cm


Product Height



51.1 cm


Product Width



60 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Inner depth



43.3 cm


Inner width



59.4 cm


Mounting depth (max)



37 cm
