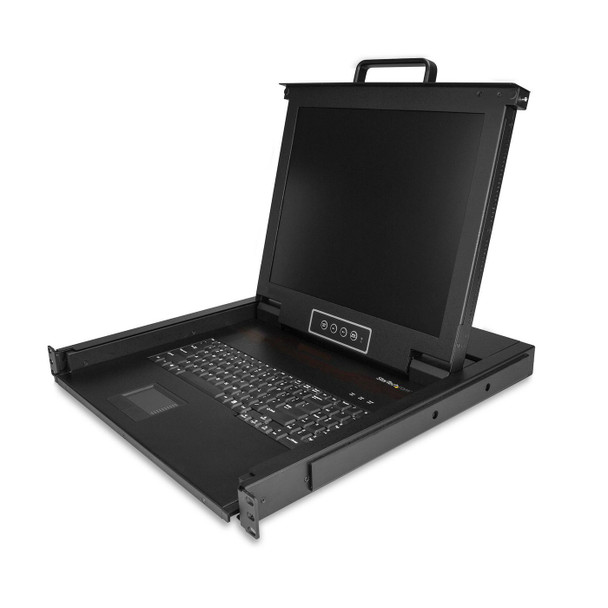

StarTech.com RKCONS1701 Rackmount Kvm Console - RKCONS1701

KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

1 VGA KVM Cable

Mounting Rails

M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height

Certificates



Certification



CE, FCC, PSE, UL


Display



Aspect ratio



5:4


Colour depth



8 bit


Contrast ratio (typical)



1000:1


Display brightness



250 cd/m�


Display diagonal



17 "


Display number of colours



16.78 million colours


Display resolution



1280 x 1024 Pixels


Display type



LCD


Pixel pitch



0.264 x 0.264 mm


Response time



5 Millisecond


Viewing angle, horizontal



170 �


Viewing angle, vertical



160 �


Logistics data



Master (outer) case height



18.5 cm


Master (outer) case length



76.5 cm


Master (outer) case width



61.5 cm


Products per master (outer) case



1 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



76.5 cm


Gross Weight (Package, kg)



15.21 kg


Height (package,cm)



18.5 cm


Width (package,cm)



61.5 cm


Packaging content



Cables included



KVM


Cage nuts included



Yes


Included power plug types



ANZ, EU, JP, NA, UK


Mounting brackets included



Yes


Number of cage nuts



8


Number of screws



8


Quick installation guide



Yes


Rack mount kit



Yes


Screws included



Yes


Ports & interfaces



Keyboard port type



USB


Mouse port type



USB


Video port type



VGA


Power



AC adapter input voltage



100 - 240 V


Input current



1.5 A


Power consumption (typical)



13 Watt


Product dimensions



Net Weight (Product, kg)



11.7 kg


Product Depth



4.25 cm


Product Height



47.1 cm


Product Width



44.8 cm


Technical details



Cable length



1.82 m


Daisy chain



No


IP control



No


Key lock



No


LED indicators



Power, Status


Material



Steel


Mean time between failures (MTBF)



50000 Hour


Operating relative humidity (H-H)



10 - 80 %


Rack capacity



1U


Rack mounting



Yes


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Mounting depth (max)



79 cm


Mounting depth (min)



45 cm
