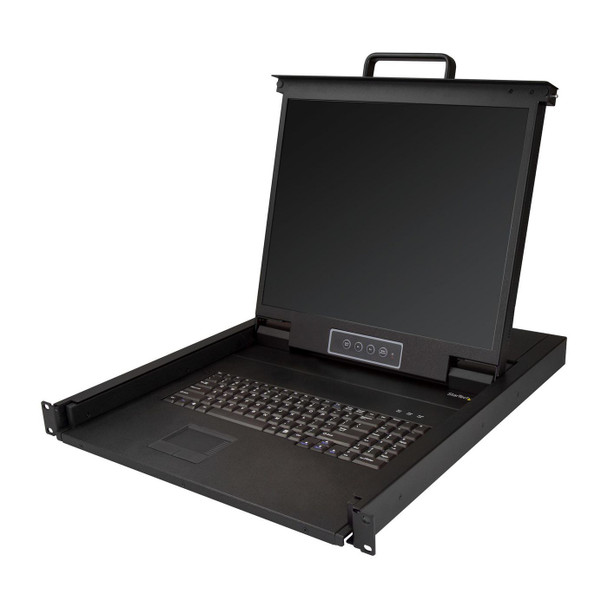

StarTech.com RKCONS1901 Rackmount Kvm Console - RKCONS1901

Control your server or KVM switch from a centralized rack console

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This KVM console provides all the essential controls you�ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.

The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 19" Active Matrix TFT 1280 x 1024 LCD
- 1U height

Certificates



Certification



CE, FCC


Display



Aspect ratio



4:3


Contrast ratio (typical)



1000:1


Display brightness



250 cd/m�


Display diagonal



19 "


Display number of colours



16.78 million colours


Display resolution



1280 x 1024 Pixels


Display type



LCD


On Screen Display (OSD)



Yes


Pixel pitch



0.264 x 0.264 mm


Viewing angle, horizontal



176 �


Viewing angle, vertical



170 �


Keyboard



Built-in touchpad



Yes


Hot keys



Yes


Logistics data



Master (outer) case height



19 cm


Master (outer) case length



76.5 cm


Master (outer) case width



61.5 cm


Products per master (outer) case



1 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



76.5 cm


Gross Weight (Package, kg)



15.86 kg


Height (package,cm)



19 cm


Width (package,cm)



61.5 cm


Packaging content



Cables included



AC, KVM


Included power plug types



ANZ, EU, JP, NA, UK


Mounting brackets included



Yes


Quick installation guide



Yes


Screws included



Yes


Ports & interfaces



Video port type



VGA


Power



Power consumption (typical)



17 Watt


Product dimensions



Net Weight (Product, kg)



12.2 kg


Product Depth



53.3 cm


Product Height



43 cm


Product Width



48.3 cm


Technical details



Audio support



No


Daisy chain



Yes


IP control



No


Key lock



No


LED indicators



Yes


Material



Steel


Mean time between failures (MTBF)



50000 Hour


Operating relative humidity (H-H)



10 - 80 %


Product colour



Black


Rack capacity



1U


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Mounting depth (max)



78 cm


Mounting depth (min)



50 cm
