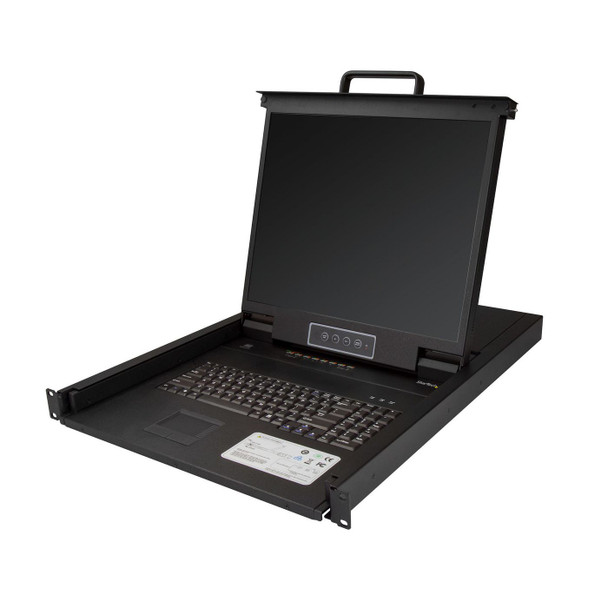

StarTech.com RKCONS1908K 8 Port Rackmount Kvm Console RKCONS1908K

Control your server or KVM switch from a centralized LCD KVM drawer

This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 8-port KVM switch provides all the essential controls you�ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8" [60.5 cm] to 35" [89 cm] (incl. mounting hardware)

Display



Colour depth



8 bit


Contrast ratio (typical)



1000:1


Display



TFT LCD


Display brightness



250 cd/m�


Display diagonal



19 "


Display number of colours



16.78 million colours


Display resolution



1280 x 1024 Pixels


Display type



LCD


Pixel pitch



0.264 x 0.264 mm


Keyboard



Built-in touchpad



Yes


Logistics data



Master (outer) case height



19 cm


Master (outer) case length



76.5 cm


Master (outer) case width



61.5 cm


Products per master (outer) case



1 pc(s)


Operational conditions



Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



76.5 cm


Gross Weight (Package, kg)



17.55 kg


Height (package,cm)



19 cm


Width (package,cm)



61.5 cm


Packaging content



Cables included



KVM


Cage nuts included



Yes


Included power plug types



ANZ, EU, JP, NA, UK


Mounting brackets included



Yes


Number of cage nuts



8


Number of screws



8


Quick installation guide



Yes


Screws included



Yes


Packaging data



Package volume



19000 cm�


Ports & interfaces



Keyboard port type



USB


Mouse port type



USB


USB 2.0 Type-A ports quantity



2


VGA (D-Sub) ports quantity



9


Video port type



VGA


Power



AC adapter input voltage



100 - 240 V


Input current



1.5 A


Power consumption (typical)



21 Watt


Product dimensions



Net Weight (Product, kg)



13.5 kg


Product Depth



64.3 cm


Product Height



4.3 cm


Product Width



48.3 cm


Technical details



Audio support



No


Daisy chain



No


IP control



No


Key lock



No


Material



Steel


Mean time between failures (MTBF)



50000 Hour


Number of computers controlled



8


Operating relative humidity (H-H)



10 - 80 %


Product colour



Black


Rack capacity



1U


Sustainability certificates



CE, RoHS, UL ECOLOGO


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Mounting depth (max)



89 cm


Mounting depth (min)



60.5 cm
