StarTech.com ST1000SPEX2L 1 PORT PCIE GIGABIT NIC - LP ST1000SPEX2L

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

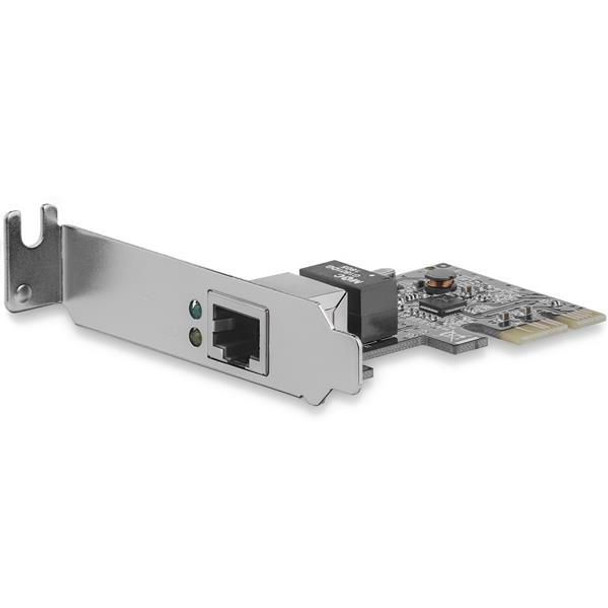

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket

Design



Certification



CE, FCC, REACH


Chipset



Realtek - RTL8111H


Internal



Yes


LED indicators



Activity, Link


Logistics data



Harmonized System (HS) code



85176990


Network



Auto MDIX IEEE



Yes


Cabling technology



10/100/1000BaseT(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Jumbo frames



9000


Jumbo frames support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Supported network protocols



CSMA/CD


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



0 - 100 �C


Other features



Link/Act LED



Yes


Power LED



Yes


Package dimensions



Depth (package,cm)



14.4 cm


Gross Weight (Package, kg)



0.125 kg


Height (package,cm)



3.1 cm


Width (package,cm)



17.3 cm


Packaging content



Manual



Yes


Ports & interfaces



Connectivity technology



Wired


Host interface



PCI Express


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.03 kg


Product Depth



7 cm


Product Height



4.9 cm


Product Width



1.8 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
