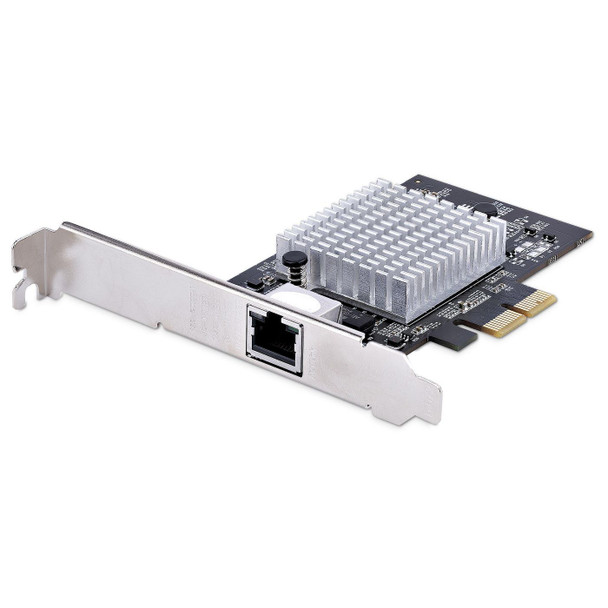

StarTech.com ST10GSPEXNB2 StarTech.com 1-Port 10Gbps ST10GSPEXNB2

Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco�; HPE�; and Juniper�.Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Design



Component for



PC


Internal



Yes


LED indicators



Y, Yes


Product colour



Black


Logistics data



Master (outer) case height



32 cm


Master (outer) case length



37.5 cm


Master (outer) case width



44.5 cm


Products per master (outer) case



40 pc(s)


Network



Auto MDIX IEEE



Yes


Cabling technology



10GBase-T


Ethernet interface type



2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000, 2500, 5000, 10000


Full duplex



Yes


Jumbo frames



16000


Jumbo frames support



Yes


Maximum data transfer rate



10000 Mbit/s


Networking standards



IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u


Operational conditions



Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3.5 cm


Width (package,cm)



21 cm


Packaging content



Mounting brackets included



Yes


Quick installation guide



Yes


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Host interface



PCIe


Interface



Ethernet


PCI Card form factor



Full-height (low-profile)


PCI version



3.0


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



12.1 cm


Product Height



2.2 cm


Product Width



10.7 cm


System requirements



Linux operating systems supported



Yes


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
