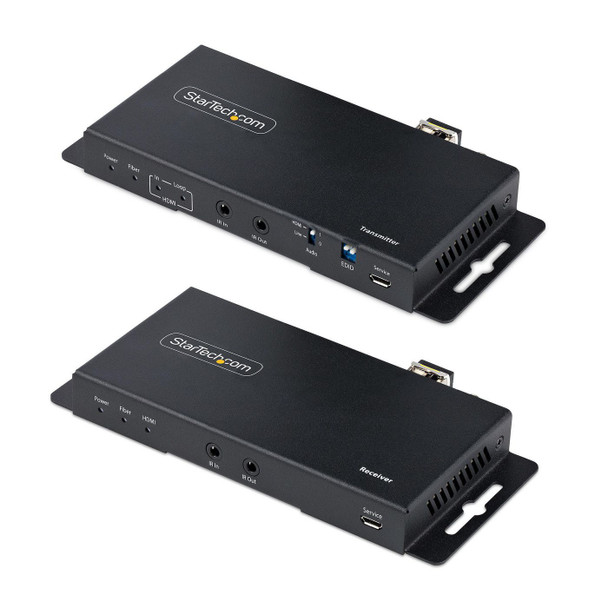

StarTech.com ST121HD20FXA2 4K Hdmi Over Fiber Extender ST121HD20FXA2

Extend an HDMI� audio and video signal over optical fiber at resolutions of up to 4K 60Hz with 7.1 channel audioThis HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.Works with Single Mode or Multimode FiberThis HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.Fiber TypeSingle ModeMulti ModeSupported DistanceUp to 3300ft (1000m)Up to 1000ft (300m)Audio CapabilitiesAudio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.Hassle-Free InstallationThe point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Features



Audio output channels



7.1 channels


Bandwidth



18 Gbit/s


Baud rate



115.2 Kbit/s


Chipset



SiFotonics SD1503/SD1513


Electrostatic Discharge (ESD) protection



Yes


Electrostatic Discharge (ESD) protection



8 kV


Extended display identification data (EDID)



Yes


Fiber mode structure



Multi-mode, Single-mode


HDCP



Yes


HDCP version



2.2


High Dynamic Range (HDR) supported



Yes


High Dynamic Range (HDR) technology



High Dynamic Range 10 (HDR10)


Infrared (IR) frequency range



20 - 60 kHz


LED indicators



Activity, Power


Maximum refresh rate



60 Hz


Maximum resolution



4096 x 2160 Pixels


Maximum transfer distance



1000 m


Product colour



Black


Type



AV transmitter & receiver


Logistics data



Master (outer) case height



40.2 cm


Master (outer) case length



53 cm


Master (outer) case width



32.5 cm


Products per master (outer) case



20 pc(s)


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



30 cm


Gross Weight (Package, kg)



0.59 kg


Height (package,cm)



6 cm


Width (package,cm)



20 cm


Packaging content



AC adapter included



Yes


IR blaster included



Yes


IR receiver included



Yes


Quick start guide



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Fiber optic connector



LC


Fiber ports quantity



2


HDMI in



1


HDMI version



2.1


Line outputs (RCA)



1


Line-in



Yes


Number of HDMI outputs



2


Remote (IR) input



2


Remote (IR) output



2


Serial interface type



RS-232


Serial ports quantity



2


USB connector type



Micro-USB B


USB ports quantity



2


Power



AC input voltage



100 - 240 V


Input current



0.35 A


Operating voltage



5 V


Output current



1 A


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Depth



13.4 cm


Product Height



1.8 cm


Product Width



6.8 cm


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
