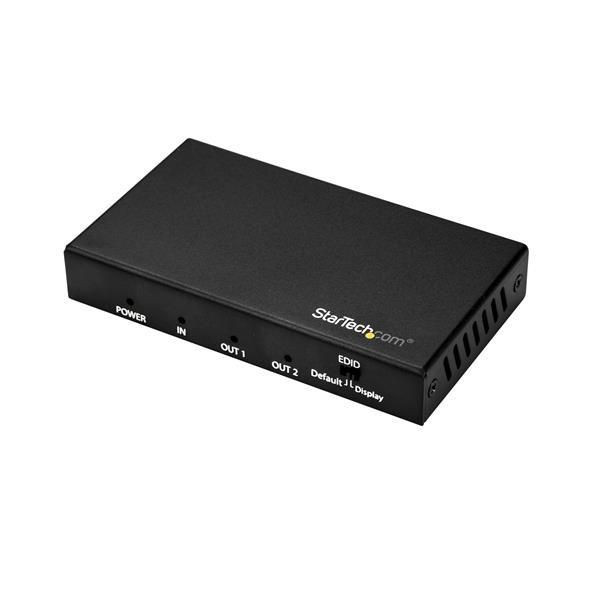

StarTech.com ST122HD202 2-Port Hdmi Splitter - 60Hz ST122HD202

1 In 2 Out Video Splitter | HDMI 2.0 | HDR | 2-Year WarrantyThis 2-Port 4K HDMI splitter connects your HDMI video source to two HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.True 4K at 60Hz and HDRWith transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.Widely CompatibleThe 2-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.Easy InstallationFor hassle-free setup, the 1x2 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.ST122HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Features



Certification



CE, FCC


HDCP



Yes


LED indicators



Yes


Maximum resolution



3840 x 2160 Pixels


Plug and Play



Yes


Power LED



Yes


Product colour



Black


Supported graphics resolutions



1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160


Supported video modes



720p, 1080p


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



10 cm


Gross Weight (Package, kg)



0.21 kg


Height (package,cm)



1.6 cm


Width (package,cm)



5.5 cm


Packaging content



AC adapter included



Yes


User guide



Yes


Ports & interfaces



HDMI version



2.0


Video out



2x HDMI


Video port type



HDMI


Video ports quantity



2


Power



AC input voltage



100 - 240 V


Input current



0.2 A


Output current



1 A


Output voltage



5 V


Power consumption (typical)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.16 kg


Sustainability



Sustainability certificates



RoHS


Technical details



Supported audio channels



7.1


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



56 x 100 x 17 mm
