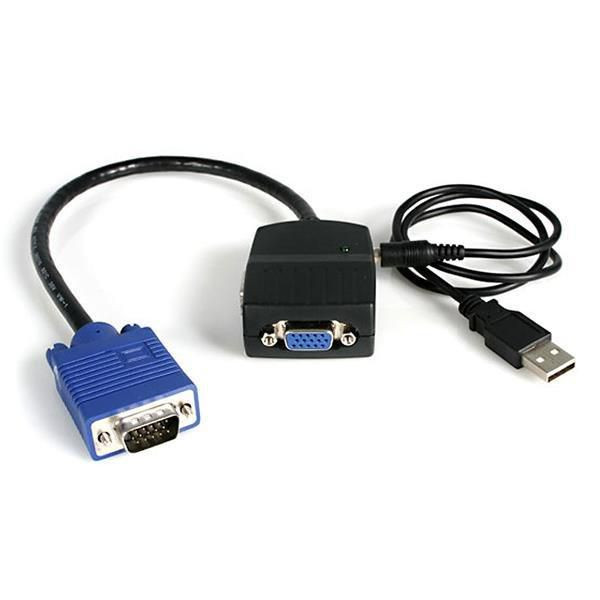

StarTech.com ST122LE 2 PORT VGA VIDEO SPLITTER ST122LE

Compact USB-powered VGA splitter allows you to split a video source to two separate displays

This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.

Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.

Application Diagram

The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.

The StarTech.com Advantage

- USB-Powered VGA video splitter, no bulky external power adapter required
- Multiple screens let you communicate your message more effectively to large audiences with greater impact
- Integrated signal amplifier boosts your connection range to 210 feet (65 meters)

Features



Bandwidth



300 MHz


Certification



REACH, CE, FCC, TAA


Housing material



Plastic


Maximum operating distance



61 m


Maximum resolution



2048 x 1536 Pixels


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 70 �C


Storage temperature (T-T)



-20 - 85 �C


Package dimensions



Depth (package,cm)



21 cm


Gross Weight (Package, kg)



0.235 kg


Height (package,cm)



4 cm


Width (package,cm)



14.5 cm


Packaging content



Manual



Yes


Ports & interfaces



Video out



2x VGA


Video port type



VGA


Video ports quantity



2


Power



Output current



0.5 A


Output voltage



5 V


USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.06 kg


Sustainability



Sustainability certificates



RoHS


Technical details



Connector 1



DB15


Connector 2



DB15


Technical features



DDC, DDC2, DDC2B


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
