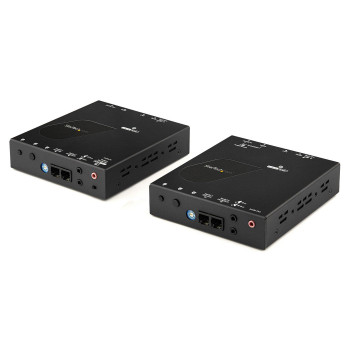

StarTech.com ST12MHDLAN2R ~Hdmi Over Ip Receiver for ST12MHDLAN2R

HDMI® Video Over Cat5e or Cat6 |Scale to Multiple Displays |Mobile Control AppThis HDMI over IP receiver works with the HDMI Over IP Extender Kit (ST12MHDLAN2K, sold separately) and an Ethernet switch (sold separately), to receive HDMI video over your local area network (LAN) in remote locations, using Cat5e or Cat6 cabling. You can use additional receivers to distribute the HDMI signal to multiple locations or combine your remote displays to create a video wall.Highly ScalableIn a point-to-multipoint (one source to many screens) or multipoint-to-multipoint (many sources to many screens) configuration, you can output video to over 100 additional displays. Each display requires a receiver. Remote control of serial devices is supported through RS232 extension.Resolutions Up to 1080p, with AudioWith support for video resolution up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.Mobile Control with Included AppThe kit includes an easy-to-use online app to manage your IP video distribution.The app is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser for your desktop.Hassle-Free InstallationThe HDMI over IP receiver includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.ST12MHDLAN2R is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Features



Audio output channels



7.1 channels


Cable types supported



Cat5e, Cat6


Certification



CE, FCC, TAA


Daisy chain



Yes


LED indicators



Link, Power, Status


Material



Aluminium


Maximum resolution



1920 x 1080 Pixels


Maximum transfer distance



100 m


Product colour



Black


Rack mounting



Yes


Rubber feet



Yes


Supported graphics resolutions



1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)


Type



AV receiver


Logistics data



Master (outer) case height



27.5 cm


Master (outer) case length



41 cm


Master (outer) case width



32.3 cm


Products per master (outer) case



6 pc(s)


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 °C


Storage temperature (T-T)



-10 - 60 °C


Package dimensions



Depth (package,cm)



29.5 cm


Gross Weight (Package, kg)



0.59 kg


Height (package,cm)



6.4 cm


Width (package,cm)



20.8 cm


Packaging content



Cables included



LAN (RJ-45), Phone (RJ-11)


Included power plug types



ANZ, EU, JP, NA, UK


IR blaster included



Yes


IR receiver included



Yes


Manual



Yes


Mounting kit



Yes


Ports & interfaces



Audio input



3.5 mm


Audio output



3.5 mm


Connectivity technology



Wired


Number of HDMI outputs



1


Remote (IR) input



1


Remote (IR) output



1


RJ-11 ports quantity



2


RJ-45 input ports



1


Power



AC input voltage



100 - 240 V


External power adapter



Yes


Input current



0.6 A


Operating voltage



12 V


Output current



1.5 A


Power consumption (typical)



10 Watt


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Depth



0.3 cm


Product Height



0.07 cm


Product Width



0.21 cm


Technical details



Audio support



Yes


Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
