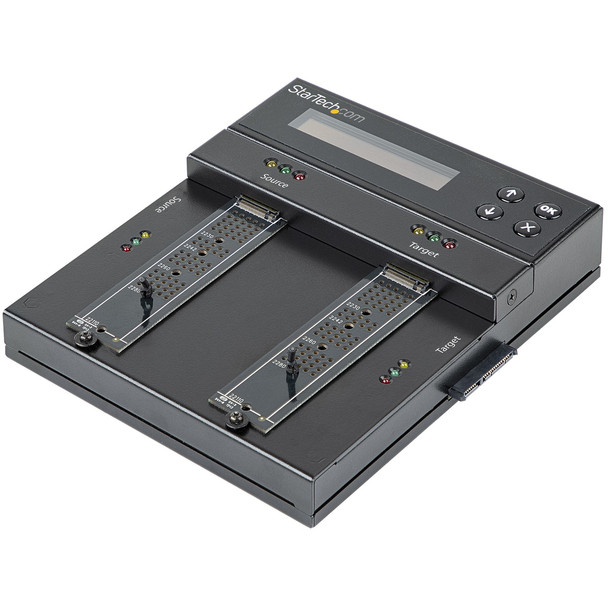

StarTech.com Standalone M.2 SATA & M.2 NVMe Duplicator and Eraser - HDD/SSD Clon SM2DUPE11

Hostless Drive Duplicator and Eraser | PCIe M.2 | SATA M.2 | 2.5 in. SATA | 3.5 in. SATAThe StarTech.com Advantage

Features


BROAD DRIVE COMPATIBILITY: Standalone 1-to-1 duplicator and eraser for M.2 PCIe NVMe (M-Key), M.2 SATA AHCI (B+M-Key), SATA 2.5/3.5"" drives; Clone at up to 7.5GBpm; No PC/software required; Duplicate between M.2 NVMe/SATA & 2.5/3.5"" SATA drive interfaces


CONFIGURABLE DUPLICATION MODES: Solid State Drive (SSD)/Hard Disk Drive (HDD) cloner supports multiple modes: System & File, All Partitions, Whole Drive & Percentage Duplication; Adjustable Host Protected Area (HPA) settings to include/exclude partitions


CONFIGURABLE ERASE MODES: Drive wiper w/ 5 erase modes: Quick Erase, Full Erase (Single & 3-Pass), Secure Erase (Clear/Purge, meets NIST SP 800-88 Rev 1); Adjustable HPA; Upgradeable firmware complies with future DOD & Government standards; TAA Compliant


EASY TO USE: External drive duplicator/sanitizer has intuitive button-operated interface w/ full on-screen display (OSD) for increased manageability; Menu incl: Error Reporting, Present Drive Info; LED indicators (Power/Activity, Status, Error); Tool-less


WIDE COMPATIBILITY: M.2 NVMe duplicator supports M.2 NGFF SSDs sized 2230/2242/2260/2280/22110; M.2 NVMe & M2 SATA drives incl. Samsung 850/860/870/950/960/970, WD, HP, & Intel; 2.5""/3.5"" SATA HDD/SSD; Supports IDE/mSATA using SAT2IDEADP/SAT32MSAT257



Weight & dimensions


Weight

1.2 kg


Dimensions (WxDxH)

208 x 181 x 29 mm



Logistics data


Master (outer) case width

520 mm


Products per pallet

6 pc(s)


Master (outer) case height

330 mm


Products per master (outer) case

6 pc(s)


Master (outer) case length

520 mm



Technical details


Duplicator operating modes

Copy, Erase


Number of simultaneous copies

1 copies


Product type

HDD/SSD duplicator


Product colour

Black


Maximum supported storage capacity

16 TB


Housing material

Metal


Interface

SATA


Transfer rate

7.5 GB/min


LED indicators

Yes


Sustainability certificates

CE, RoHS



Hard drive


SSD interface

M.2


Supported HDD sizes

2.5,3.5"


Supported HDD interfaces

Serial ATA



Operational conditions


Operating temperature (T-T)

5 - 45 �C


Operating relative humidity (H-H)

20 - 80


Storage temperature (T-T)

-20 - 85 �C



Power


AC input voltage

110 - 240 V


Power consumption (typical)

60 W


Output voltage

12 V


Power plug type

Type M


Input current

1.4 A


Included power plug types

ANZ, EU, JP, NA, UK


Output current

5 A



Display


Display

LCD



Packaging data


Package height

95 mm


Cables included

AC, SATA


Package depth

465 mm


Package width

235 mm


Package length

23.6 cm


Package weight

3 kg


Manual

Yes


AC adapter included

Yes


Number of pads included

2
