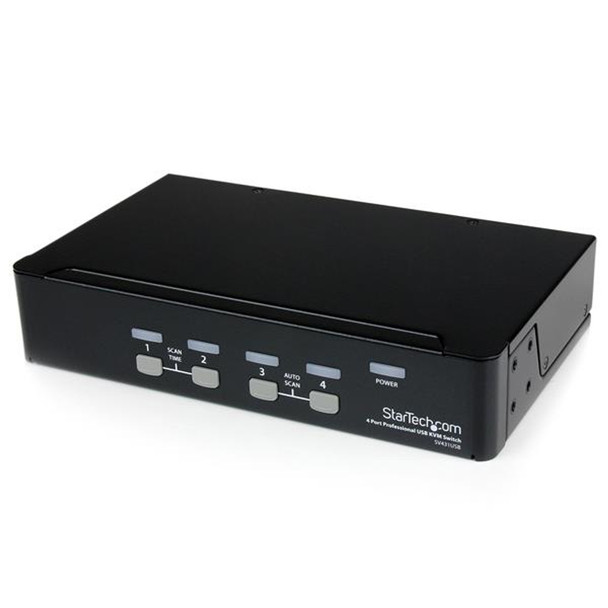

StarTech.com StarView SV431USB - KVM switch - USB - 4 ports - 1 local user - USB SV431USB

Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

The StarTech.com Advantage

- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Features


Keep-alive feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control


A dependable 3-year warranty provides peace of mind


Compatible with all notebook computers


Control 4 PCs, G3/G4 Macs or IMACS from one USB keyboard/mouse/monitor


Fast switch-buttons for each port provide quick access to any connected system


High 1920x1440 resolution capability supports the most demanding applications


Hot-plug to allow computers to be added or removed without worrying about having to reboot the other connected systems


Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets


USB self-power operation


Powerful features that increase usability.



Design


Mean time between failures (MTBF)

82506 h


Product colour

Black


Hot keys

No


Maximum cable length

5 m


Rack mounting

Yes


Housing material

Steel


Rack capacity

1U


Certification

CE, FCC, REACH, TAA, cUR



Weight & dimensions


Height

44 mm


Width

130 mm


Depth

220 mm


Weight

988 g



Packaging content


Rubber feet

Yes


Manual

Yes



Logistics data


Harmonized System (HS) code

85176200



Sustainability


Sustainability certificates

RoHS



Other features


IP control

No



Ports & interfaces


Number of computers controlled

4


Audio connections

No


Keyboard port type

USB


Console ports

USB A, VGA (D-Sub)


Mouse port type

USB


Video port type

VGA


DC-in jack

Yes


Console USB ports quantity

4



Performance


Maximum resolution

1920 x 1440 pixels


Number of users

1 user(s)


Scan interval

3,8,15,30 s


Daisy chain

No



Power


AC input voltage

110-240 V


Output voltage

5 V


Power plug type

Type N


Input current

0.4 A


Output current

2 A



Display


Built-in display

No


On Screen Display (OSD)

No



Packaging data


Package height

72 mm


Package depth

295 mm


Package width

196 mm


Package weight

1.3 kg
