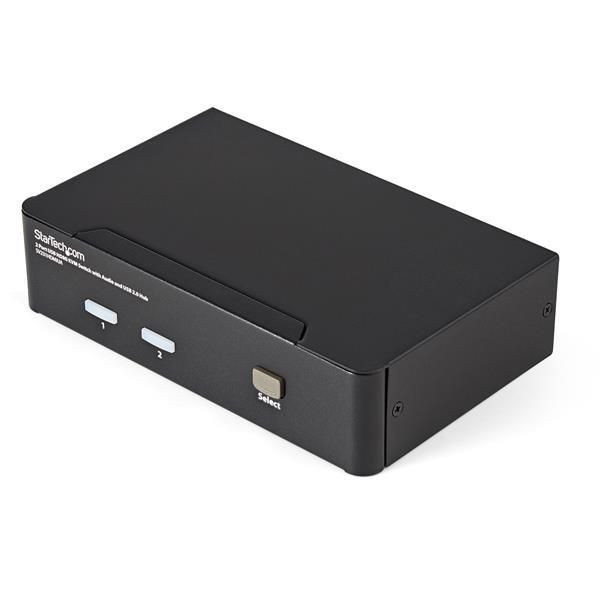

StarTech.com SV231HDMIUA 2 PORT USB HDMI KVM SWITCH SV231HDMIUA

Share a keyboard, mouse and HDMI monitor between 2 multimedia computers

The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices

Design



Certification



R0HS


Mean time between failures (MTBF)



126813 Hour


Product colour



Black


Rack mounting



No


Display



On Screen Display (OSD)



No


Logistics data



Harmonized System (HS) code



85176200


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Other features



Connectivity technology



Wired


Dimensions (WxDxH)



124.8 x 70 x 40 mm


I/O ports



1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F)


Ports quantity



2


Power requirements



AC 110 - 240 V


Package dimensions



Depth (package,cm)



25 cm


Gross Weight (Package, kg)



1 kg


Height (package,cm)



10 cm


Width (package,cm)



18.8 cm


Packaging content



AC adapter included



Yes


Manual



Yes


Rubber feet



Yes


Performance



Daisy chain



No


HD type



Full HD


Maximum resolution



1920 x 1200 Pixels


Ports & interfaces



Console ports



3.5mm headphone, 3.5mm mic, HDMI, USB A


Console USB ports quantity



4


Headphone outputs



3


Keyboard port type



USB


Mouse port type



USB


Number of computers controlled



2


Number of microphone inputs



3


Video port type



HDMI


Power



AC input voltage



100 - 240 V


DC input voltage



12 V


Input current



0.8 A


Output current



1.5 A


Power consumption (typical)



18 Watt


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.26 kg


Product Depth



7 cm


Product Height



4 cm


Product Width



12.5 cm


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
