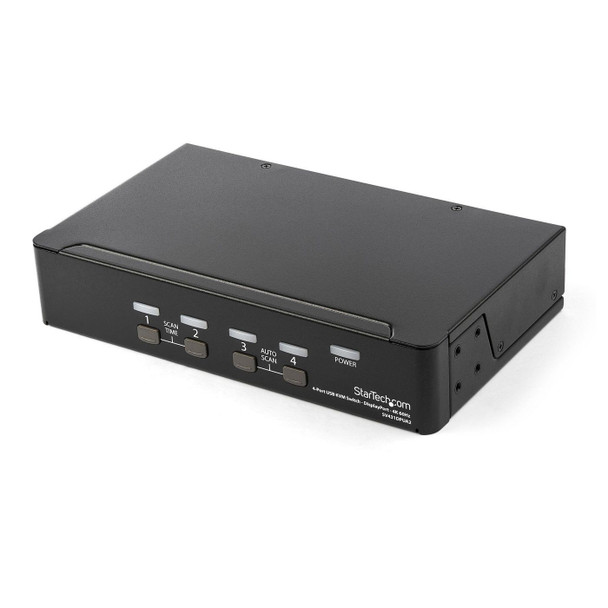

StarTech.com SV431DPUA2 DISPLAYPORT KVM SWITCH 4K 60HZ SV431DPUA2
- UPC:
- 0065030826372
- MPN:
- SV431DPUA2
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
Design
Certification
CE, FCC, TAA, REACH
Hot keys
Yes
Housing material
Steel
LED indicators
Y, Yes
Mean time between failures (MTBF)
138327 Hour
Product colour
Black
Rack capacity
1U
Rack mounting
Yes
Display
On Screen Display (OSD)
Yes
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case height
25.8 cm
Master (outer) case length
54.5 cm
Master (outer) case width
43.3 cm
Products per master (outer) case
6 pc(s)
Network
Ethernet LAN
No
Operational conditions
Operating relative humidity (H-H)
0 - 40 %
Operating temperature (T-T)
0 - 40 �C
Storage temperature (T-T)
-10 - 60 �C
Other features
Audio support
Yes
IP control
No
Package dimensions
Depth (package,cm)
40.9 cm
Gross Weight (Package, kg)
1.6 kg
Height (package,cm)
8.7 cm
Width (package,cm)
21.2 cm
Packaging content
AC adapter included
Yes
Quick installation guide
Yes
Rubber feet
Yes
Performance
Daisy chain
No
Data transfer rate (max)
0.48 Gbit/s
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 Pixels
Number of users
1 user(s)
Plug and Play
Yes
Scan interval
3, 8, 15, 30
Ports & interfaces
Audio connections
Yes
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
4
DC-in jack
Yes
DisplayPorts quantity
5
Headphone outputs
5
Keyboard port type
USB
Mouse port type
USB
Number of computers controlled
4
Number of microphone inputs
5
USB 2.0 Type-B ports quantity
4
Video port type
DisplayPort
Power
AC input voltage
100 - 240 V
Compatible power plug types
AU, EU, JP, UK, US
External power adapter
Yes
Input current
0.6 A
Output current
1.5 A
Output voltage
12 V
Power consumption (typical)
18 Watt
Power plug type
Type M
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
22 cm
Product Height
4.5 cm
Product Width
13.1 cm
Sustainability
Sustainability certificates
RoHS
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
View AllClose
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
Design
Certification
CE, FCC, TAA, REACH
Hot keys
Yes
Housing material
Steel
LED indicators
Y, Yes
Mean time between failures (MTBF)
138327 Hour
Product colour
Black
Rack capacity
1U
Rack mounting
Yes
Display
On Screen Display (OSD)
Yes
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case height
25.8 cm
Master (outer) case length
54.5 cm
Master (outer) case width
43.3 cm
Products per master (outer) case
6 pc(s)
Network
Ethernet LAN
No
Operational conditions
Operating relative humidity (H-H)
0 - 40 %
Operating temperature (T-T)
0 - 40 �C
Storage temperature (T-T)
-10 - 60 �C
Other features
Audio support
Yes
IP control
No
Package dimensions
Depth (package,cm)
40.9 cm
Gross Weight (Package, kg)
1.6 kg
Height (package,cm)
8.7 cm
Width (package,cm)
21.2 cm
Packaging content
AC adapter included
Yes
Quick installation guide
Yes
Rubber feet
Yes
Performance
Daisy chain
No
Data transfer rate (max)
0.48 Gbit/s
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 Pixels
Number of users
1 user(s)
Plug and Play
Yes
Scan interval
3, 8, 15, 30
Ports & interfaces
Audio connections
Yes
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
4
DC-in jack
Yes
DisplayPorts quantity
5
Headphone outputs
5
Keyboard port type
USB
Mouse port type
USB
Number of computers controlled
4
Number of microphone inputs
5
USB 2.0 Type-B ports quantity
4
Video port type
DisplayPort
Power
AC input voltage
100 - 240 V
Compatible power plug types
AU, EU, JP, UK, US
External power adapter
Yes
Input current
0.6 A
Output current
1.5 A
Output voltage
12 V
Power consumption (typical)
18 Watt
Power plug type
Type M
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
22 cm
Product Height
4.5 cm
Product Width
13.1 cm
Sustainability
Sustainability certificates
RoHS
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
