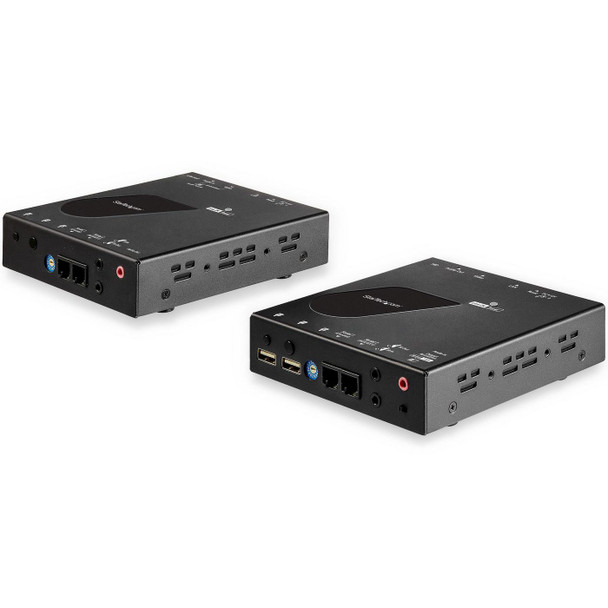

StarTech.com SV565HDIP Hdmi Kvm Extender Over Ip SV565HDIP

KVM Console Extender Over IP | HDMI� | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.Supports UHD 4K 30HzThe HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.Hassle-Free InstallationWith a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.Versatile Configuration OptionsThe extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).SV565HDIP is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Design



Certification



CE, FCC, TAA, REACH


Hot keys



No


Housing material



Steel


LED indicators



Y, Yes


Mean time between failures (MTBF)



60000 Hour


Product colour



Black


Display



Built-in display



No


On Screen Display (OSD)



Yes


Logistics data



Harmonized System (HS) code



85176200


Master (outer) case height



26.5 cm


Master (outer) case length



49.5 cm


Master (outer) case width



38.5 cm


Products per master (outer) case



6 pc(s)


Network



Ethernet LAN (RJ-45) ports



2


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-10 - 60 �C


Other features



IP control



No


Package dimensions



Depth (package,cm)



19.5 cm


Gross Weight (Package, kg)



0.79 kg


Height (package,cm)



23.5 cm


Width (package,cm)



36.5 cm


Packaging content



AC adapter included



Yes


Cables included



HDMI, LAN (RJ-45), Phone (RJ-11), USB


Quick installation guide



Yes


Rubber feet



Yes


Performance



Audio channels



7.1


Chipset



ASPEED - AST1520


Daisy chain



No


HD type



4K Ultra HD


Maximum operating distance



100 m


Maximum resolution



3840 x 2160 Pixels


Video bandwidth



30 Hz


Ports & interfaces



Audio connections



Yes


DC-in jack



Yes


HDMI ports quantity



2


Headphone outputs



8


Keyboard port type



USB


Mouse port type



USB


Number of microphone inputs



2


USB 2.0 Type-A hub ports quantity



2


USB hub



Yes


Video port type



HDMI


Power



AC input voltage



100 - 240 V


Compatible power plug types



AU, EU, JP, UK


External power adapter



Yes


Input current



0.6 A


Output current



1.5 A


Output voltage



12 V


Power consumption (typical)



18 Watt


Power plug type



Type M


Product dimensions



Net Weight (Product, kg)



0.61 kg


Product Depth



13 cm


Product Height



2.8 cm


Product Width



11.7 cm


Sustainability



Sustainability certificates



RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
