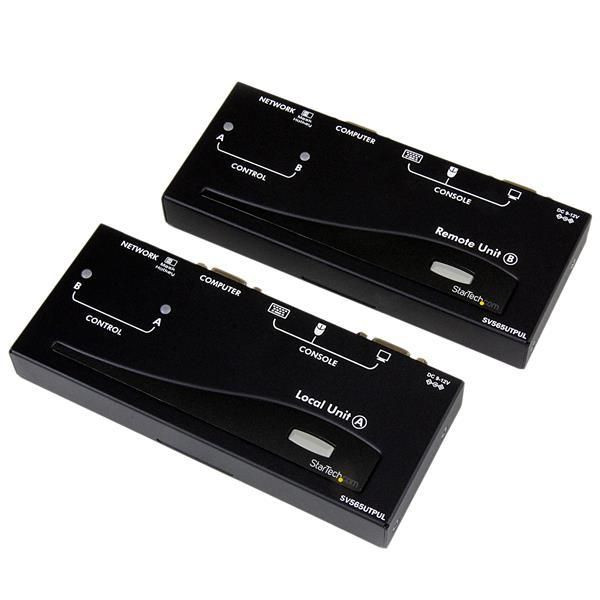

StarTech.com SV565UTPUL USB VGA KVM CONSOLE EXTENDER SV565UTPUL

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support

Features



Connectivity technology



Wired


KVM port selection



Hotkeys, Push-buttons


Maximum analog resolution



1920 x 1200 Pixels


Maximum transfer distance



300 m


Plug and Play



Yes


Product colour



Black


Rack mounting



No


Type



Transmitter & receiver


Logistics data



Harmonized System (HS) code



84733080


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



29.4 cm


Gross Weight (Package, kg)



1.5 kg


Height (package,cm)



7.2 cm


Width (package,cm)



19.7 cm


Packaging content



Cables included



KVM, USB, VGA


Manual



Yes


Power



AC adapter output current



1.5 A


AC adapter output voltage



12 V


AC input voltage



110-240 V


Product dimensions



Net Weight (Product, kg)



1.371 kg


Receiver



Receiver local keyboard/mouse port type



USB


Receiver local video port type



VGA


Technical details



Maximum resolution



1920 x 1200 Pixels


Power requirements



115 AC / 9 DC


Weight



1.5 kg


Transmitter



Transmitter local keyboard/mouse port type



USB


Transmitter video port type



VGA


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)


Weight & dimensions



Receiver depth



7 cm


Receiver height



2 cm


Receiver weight



1.5 kg


Receiver width



15.7 cm


Transmitter depth



7 cm


Transmitter height



2 cm


Transmitter weight



1.5 kg


Transmitter width



15.7 cm
