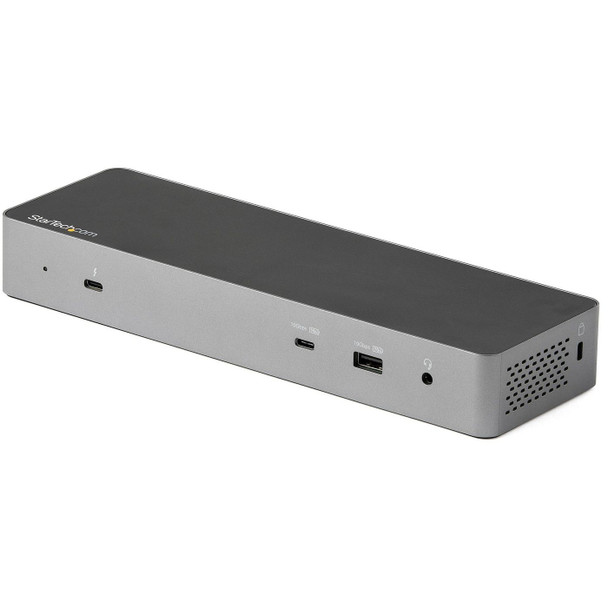

StarTech.com TB3CDK2DHUE Thunderbolt 3 Dock W/ Usb-C TB3CDK2DHUE

Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows�| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable

A high-performance Thunderbolt 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either Dual or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet & headset ports.

Flexible Dual Display Outputs

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort

HDMI + HDMI

DisplayPort + HDMI

Resolutions and video outputs are host-dependent.

Host Output

DCS Status

Single Video

Dual Video

Thunderbolt with DP 1.4 (nVidia Graphics)

Off

8K (7680 x 4320) @ 30Hz (DP Only)

n/a

Thunderbolt with DP 1.4 (nVidia Graphics)

Off

n/a

2x 4K (3840x2160) @60Hz

Thunderbolt with DP 1.4 (nVidia Graphics)

On

4K (3840x2160) @144Hz

n/a

Thunderbolt with DP 1.4 (nVidia Graphics)

On

n/a

2x 4K (3840x2160) @60Hz

Thunderbolt with DP 1.4 (Intel Graphics)

n/a

5K (5120x2880) @60Hz (DP Only)

n/a

Thunderbolt with DP 1.4 (Intel Graphics)

n/a

n/a

2x 4K (3840x2160) @60Hz

Thunderbolt with DP 1.2

n/a

4K (3840x2160) @60Hz

n/a

Thunderbolt with DP 1.2

n/a

n/a

2x 4K (3840x2160) @60Hz

USB Type-C DP Alternate Mode DP 1.4

Off

4K (3840x2160) @30Hz

n/a

USB Type-C DP Alternate Mode DP 1.4

Off

n/a

2x QHD (2560x1440)

USB Type-C DP Alternate Mode DP 1.4

On

5K (5120x2880) @60Hz (DP Only)

n/a

USB Type-C DP Alternate Mode DP 1.4

On

n/a

2x 4K (3840x2160) @60Hz

USB Type-C DP Alternate Mode DP 1.2

n/a

4K (3840x2160) @30Hz

n/a

USB Type-C DP Alternate Mode DP 1.2

n/a

n/a

2x 1080p (1920x1080) @ 60Hz

More Downstream USB Ports

Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:
Front Facing:
1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging

1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

Back Facing:
2x USB 3.2 Gen 1 Type-A (5 Gbps)

1x USB 3.2 Gen 2 Type-C (10 Gbps)

Easy to Set Up & Manage

This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The TB3CDK2DHUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

TB3CDK2DHUE is backed by a StarTech.com three-year warranty and free lifetime technical support.

The StarTech.com Advantage

- FULL FUNCTION DOCK: Thunderbolt 3 docking station with USB-C compatibility features dual monitor 4K 60Hz, 96W PD, 5x USB Hub (incl 2x BC 1.2 charging ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet, headset ports
- 96W CERTIFIED POWER DELIVERY: Thunderbolt 3 / USB Type-C Dock can deliver up to 100W peak power (96W sustained) and charge high performance laptops, Ultrabooks & workstation laptop computers such as MacBook Pro 16, HP, Lenovo ThinkPad & Dell XPS
- FLEXIBLE MONITOR OUTPUTS: Thunderbolt 3 docking station features dual DisplayPort 1.4 w/ DSC (single 8K 30Hz) or dual HDMI 2.0 video outputs w/ options for dual DP, dual HDMI or DP + HDMI displays at dual 4K 60Hz on both TB3 & USB-C (non TB3) laptops

Logistics data



Harmonized System (HS) code



84733020


Master (outer) case height



32 cm


Master (outer) case length



50 cm


Master (outer) case width



24.8 cm


Products per master (outer) case



40 pc(s)


Network



Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



0 - 35 �C


Storage temperature (T-T)



-20 - 70 �C


Other features



Chipset



C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C


Package dimensions



Depth (package,cm)



16 cm


Gross Weight (Package, kg)



0.33 kg


Height (package,cm)



11 cm


Width (package,cm)



30.5 cm


Packaging content



AC adapter included



Yes


Cables included



AC, Thunderbolt


Manual



Yes


Performance



Cable lock slot



Yes


Card reader integrated



No


Data transfer rate



40 Gbit/s


Maximum digital resolution



7680 x 4320 Pixels


Number of displays supported



2


Product colour



Black, Grey


Ports & interfaces



Combo headphone/mic port



Yes


Connectivity technology



Wired


DC-in jack



Yes


DisplayPorts quantity



2


HDMI ports quantity



2


Headphone connectivity



3.5 mm


Headphone outputs



1


Host interface



Thunderbolt 3


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



1


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



2


USB Power Delivery



Yes


USB Power Delivery up to



96 Watt


Power



AC input voltage



100 - 240 V


Compatible power plug types



EU, UK


Input current



2.5 A


Output current



8.5 A


Output voltage



20 V


Product dimensions



Net Weight (Product, kg)



0.25 kg


Product Depth



8 cm


Product Height



3 cm


Product Width



22 cm


Software



Linux operating systems supported



Ubuntu 18.04 LTS, Ubuntu 20.04 LTS


Mac operating systems supported



Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
