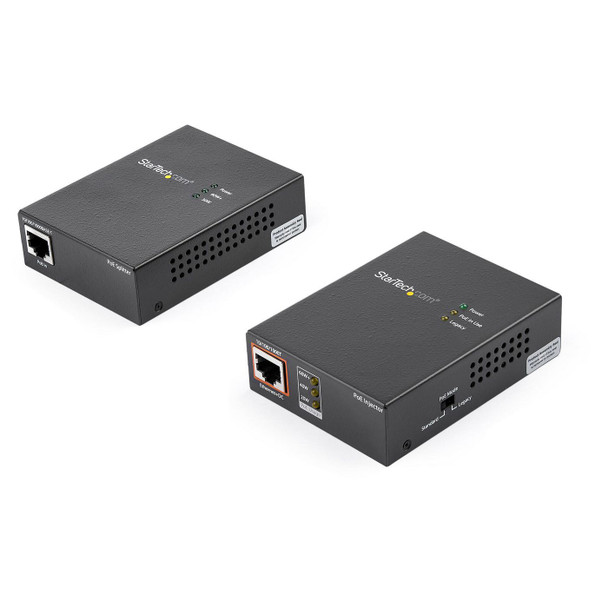

StarTech.com UPOESPLT1G 1 Port Gigabit Poe Injector & UPOESPLT1G

60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000MbpsThis 60W PoE Injector + PoE Splitter Kit comes with a 60W Power over Ethernet injector, adding PoE via PoE.60 Watt Ultra Power Over EthernetCompliant with IEEE 802.3bt and supporting up to 60 watts of PoE, you can do more than just power your IP phone or wireless router. 60W PoE can support your higher-powered devices such as thin clients, POS systems, laptops or digital signage, from up to 100 meters away.Easy to DeployThe PoE injector and PoE splitter are both simple to set up. Supporting plug-and-play installation, they also feature a compact, all-in-one design, and a durable, wall-mountable metal housing. The PoE splitter�s 12V/19V/24V DIP switch on the front panel offers either 24V DC power to industrial equipment or 12V/19V DC output to common network devices, increasing the number of product applications.StarTech.com Networking IOStarTech.com offers networking products that extend your networks to remote locations at extreme distances, for maximum network scalability. This Port 60W PoE Injector + PoE Splitter Kit is backed by a 2-year warranty and free lifetime North American based multilingual technical support.The StarTech.com Advantage

Design



Housing material



Metal


LED indicators



PoE, System


Product colour



Black, Brown


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



27.5 cm


Master (outer) case length



54.5 cm


Master (outer) case width



43 cm


Products per master (outer) case



6 pc(s)


Network



Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



28.4 cm


Gross Weight (Package, kg)



0.52 kg


Height (package,cm)



7 cm


Width (package,cm)



33.4 cm


Packaging content



Cables included



LAN (RJ-45)


Manual



Yes


Performance



Auto MDIX IEEE



No


Data transfer rate



1000 Mbit/s


Flow control support



No


Jumbo frames support



No


Maximum transfer distance



100 m


Mean time between failures (MTBF)



50000 Hour


Plug and Play



Yes


Type



Network transmitter & receiver


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



5


Power



AC input voltage



100 - 240 V


Included power plug types



AU, EU, JP, NA, UK


Input current



2 A


Output current



1.33 A


Power consumption (typical)



71.82 Watt


Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) voltage range



12 - 24 V


Total Power over Ethernet (PoE) budget



60 Watt


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



0.4 cm


Product Height



0.09 cm


Product Width



0.25 cm


Technical details



Sustainability certificates



CE, RoHS


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
