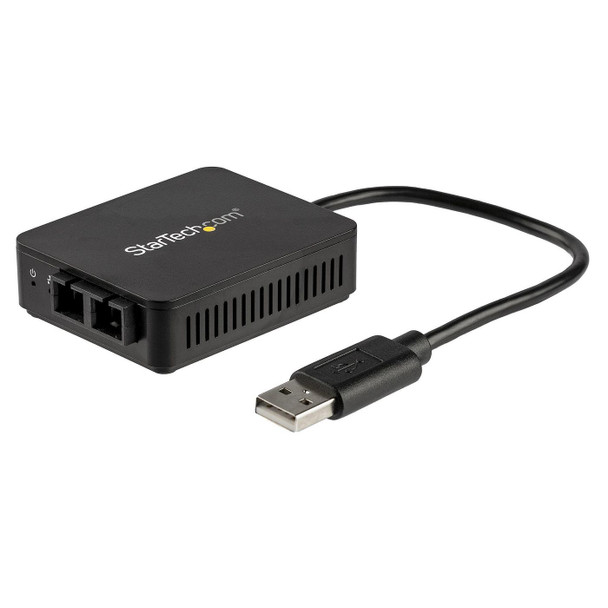

StarTech.com US100A20FXSC USB TO FIBER OPTIC CONVERTER US100A20FXSC

Connect to a 100Mbps fiber optic network through your laptop�s USB-A portThis USB to fiber-optic converter lets you utilize the USB 2.0 (Type-A) port on your laptop or tablet to provide a secure fiber network connection. Windows� and Mac compatible, the network adapter provides a 100Mbps Ethernet network connection and 100BaseFX SC optical transceiver.Fiber-optic SC portWith an optical transceiver for 100Base-FX networks, the USB to fiber converter delivers network connectivity with a maximum range of 2 km over multimode fiber.Secure fiber-to-the-desk connectivityFor reliable fiber connectivity, this USB to fiber-optic converter protects your network from problems with electronic interference - a common issue with copper Ethernet networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks of sensitive information, without compromising network speed and reliability.Easy portabilityCompact and portable, this USB 2.0 to fiber-optic converter is powered directly from the USB port, making it easy to connect when you�re on the go.Plug and playGet up and running quickly. The USB fiber-optic converter supports certified drivers for Windows and Linux�. When you plug the adapter into a USB port, you simply install the drivers and the adapter is ready to transmit over a fiber network.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:�Mac Address Pass-Through Utility : To improve network security.�Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe US100A20FXSC is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Design



Chipset



ASIX Electronics - AX88772C


Internal



No


LED indicators



Activity, Link, Power


Plug and Play



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



35.5 cm


Master (outer) case length



59 cm


Master (outer) case width



31 cm


Products per master (outer) case



80 pc(s)


Network



Fiber ethernet cabling technology



100BASE-FX


Maximum data transfer rate



1000 Mbit/s


Maximum operating distance



2000 m


Networking standards



IEEE 802.1Q, IEEE 802.3x


VLAN tagging



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 60 �C


Storage temperature (T-T)



-10 - 70 �C


Other features



Cable length



0.195 m


Housing material



Plastic


Quick start guide



Yes


Package dimensions



Depth (package,cm)



27 cm


Gross Weight (Package, kg)



0.108 kg


Height (package,cm)



3 cm


Width (package,cm)



5.2 cm


Ports & interfaces



Connectivity technology



Wired


Fiber optic connector



SC


Fiber ports quantity



1


Host interface



USB


Interface



Fiber


USB version



2.0


Product dimensions



Net Weight (Product, kg)



0.052 kg


Product Depth



17 cm


Product Height



2 cm


Product Width



14 cm


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks


Server operating systems supported



Windows Server 2008, Windows Server 2012, Windows Server 2016


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
