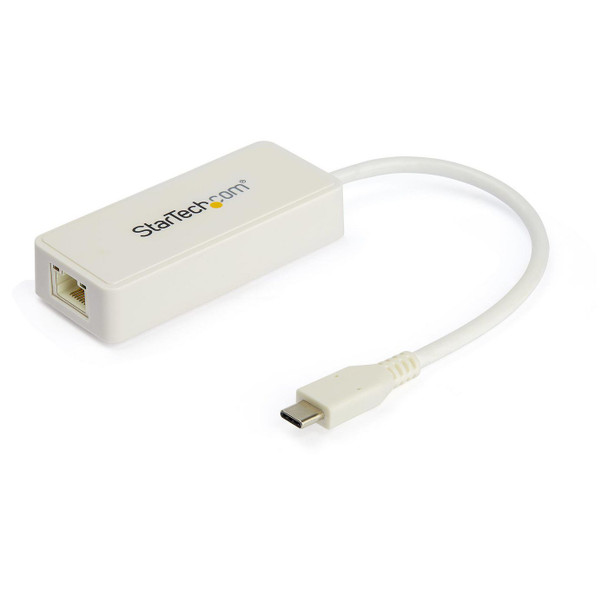

StarTech.com US1GC301AUW Usb C To Gigabit Ethernet US1GC301AUW

USB-C to Network Adapter | 10/100/1000Mbps | Thunderbolt 3 Compatible | RJ45

This USB-C Ethernet adapter connects you to a Gigabit network through the USB-C or Thunderbolt 3 port on your laptop or desktop computer and adds connectivity for an additional USB (Type-A) peripheral device. It's a great companion for your MacBook, Chromebook or Windows laptop with an available USB-C port.

Powerful Gigabit Network Connections

The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1. You can quickly access very large files over the network at Gigabit speed.

Native Driver Support Makes Installation Easy

Get up and running quickly. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS, Windows, and macOS.

Trouble-Free Connections Through USB-Type-C

The USB-C connector is smaller and easier to use than previous USB connectors. It�s a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.

With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel. The network adapter is bus-powered which makes it easy to connect when you�re on the go.

Additional Connectivity With an Extra USB 3.1 port

Some computers with USB Type-C only offer one port for external connectivity. This Ethernet adapter features a built-in USB Type-A port, giving you the freedom to attach an additional peripheral device, such as a USB mouse.

The US1GC301AUW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- SECURE WIRED CONNECTIVITY: Portable USB C to Gigabit Ethernet Adapter allows you to connect to GbE Network from USB-C/Thunderbolt 3 Laptop incl. MacBook/MacBook Pro, Surface/Surface Book, & Chromebook
- EXTRA USB 3.0/3.1 PORT: USB-C to Ethernet and USB Adapter adds a RJ45 Ethernet Port for wired LAN access and an additional open USB Type-A Port for connecting another peripheral device
- USB-C or TB3

Design



Chipset



Realtek RTL8153, VLI VL817


Component for



PC/Laptop


Internal



No


LED indicators



Y, Yes


Product colour



White


Logistics data



Harmonized System (HS) code



85176990


Master (outer) case height



36.5 cm


Master (outer) case length



58.6 cm


Master (outer) case width



32.2 cm


Products per master (outer) case



80 pc(s)


Network



Auto MDIX IEEE



Yes


Cabling technology



10/100/1000BaseT(X)


Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Full duplex



Yes


Jumbo frames



9000


Jumbo frames support



Yes


Maximum data transfer rate



5000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u


VLAN tagging



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-10 - 60 �C


Other features



Cable length



0.203 m


Housing material



Plastic


Package dimensions



Depth (package,cm)



17 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



3 cm


Width (package,cm)



14.3 cm


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Host interface



USB Type-C


Interface



Ethernet


USB ports quantity



1


USB version



3.2 Gen 1 (3.1 Gen 1)


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



27.5 cm


Product Height



1.7 cm


Product Width



3.5 cm


Sustainability



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
