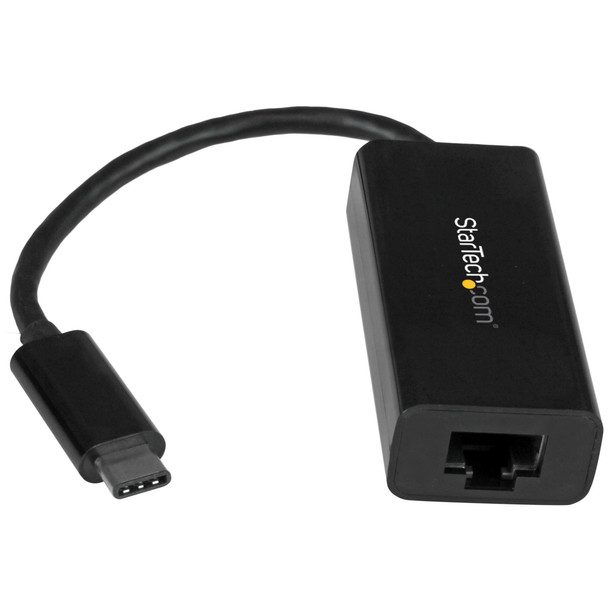

StarTech.com USB-C to Gigabit Network Adaptor - USB 3.1 Gen 1 5 Gbps US1GC30B

Instantly add a Gigabit Ethernet network connection to your computer with a USB-C to Gigabit Ethernet adapter, using either the USB Type-C� or Thunderbolt� 3 port on your computer.

Powerful Gigabit Network Connections

The USB-C to LAN adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.2 Gen 1 (5Gbps). You can access very large files over the network at 10/100/1000Mbps network speeds with checksum offload (IPv4, IPv6, TCP, UDP) and large-send offload support.

Uses USB Type-C and Thunderbolt 3

Instantly delivers Gigabit speeds using the USB-C or Thunderbolt 3 port on your device without requiring an internal Ethernet card in your device.

Native Driver Support

Simply plug the network adapter into the USB-C port on your laptop and connect to your network. The adapter's Realtek� RTL8153 chipset provides native driver support in Chrome OS�, macOS and Windows�.

Compact and Lightweight Design

This portable USB Gigabit network adapter is the ideal desktop network adapter or laptop accessory for those who require more portability. It's powered directly from the USB port making it easy to connect when you're on the go.

Our USB network adapters make it easy to add a wired network connection to your laptop, desktop or tablet. If your device has a USB port available, then our compact USB network adapters can help you connect. This USB Type-C to Ethernet adapter is backed by a 2-year warranty and free lifetime North American based Technical Support. "

Features


USB-C NETWORK ADAPTER: USB-C to RJ45 adapter adds an Ethernet port to your computer supporting up to Gigabit speeds on 10/100/1000 Mbps Networks; Ideal for reliable wired gigabit network connections, or as an alternative to WiFi


FULL FEATURED: USB-C to Ethernet dongle; Uses Realtek RTL8153 Chipset for native compatibility with laptops, desktops, and 2-in-1 computers; Compatible with USB C, Thunderbolt 3 and Thunderbolt 4


VERSATILE DESIGN: With its compact and lightweight design for maximum portability, this USB Type-C NIC/Gigabit network adapter enables you to securely connect your laptop to a Gigabit Ethernet network wherever you go; USB bus-powered


TECHNICAL SPECS: USB 3.2 Gen 1 Type-C (5 Gbps); Compatible with USB 3.0/2.0; 1x RJ45 Port; Attached Cable; 10/100/1000 Mbps; Realtek RTL8153 Chipset ; 9K Jumbo Frames; VLAN Tagging; Wake-on-LAN; Color: Black; No driver install required


OS COMPATIBILITY: USB NIC adapter for laptop offers plug and play connectivity; Works with Windows versions 7 and up, Windows Server, macOS 10.14 and up, Linux with kernel 4.11 and up (LTS only), ChromeOS, Android and iOS (iPhone 15 [Plus/Pro/Max] and up)



Design


Chipset

Realtek - RTL8153


Product colour

Black


Internal

No


Certification

CE, FCC, REACH



Weight & dimensions


Height

15 mm


Width

25 mm


Depth

210 mm


Weight

22 g



Logistics data


Master (outer) case width

320 mm


Master (outer) case height

220 mm


Products per master (outer) case

250 pc(s)


Harmonized System (HS) code

85176990


Master (outer) case length

500 mm



Sustainability


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Wake-on-LAN ready

Yes


Auto MDIX IEEE

Yes


Jumbo frames

9000


VLAN tagging

Yes


Ethernet LAN

Yes


Maximum data transfer rate

5000 Mbit/s


Full duplex

Yes


Ethernet interface type

Gigabit Ethernet


Jumbo frames support

Yes


Cabling technology

10/100/1000BaseT(X)


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Housing material

Plastic



Operational conditions


Operating temperature (T-T)

0 - 70 �C


Operating relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-10 - 80 �C



Ports & interfaces


USB version

3.2 Gen 1 (3.1 Gen 1)


Host interface

USB


Ethernet LAN (RJ-45) ports

1


Connectivity technology

Wired


Interface

Ethernet



System requirements


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019


Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura


Linux operating systems supported

Yes



Power


USB powered

Yes



Packaging data


Package height

30 mm


Package depth

220 mm


Package width

122 mm


Package weight

100 g
