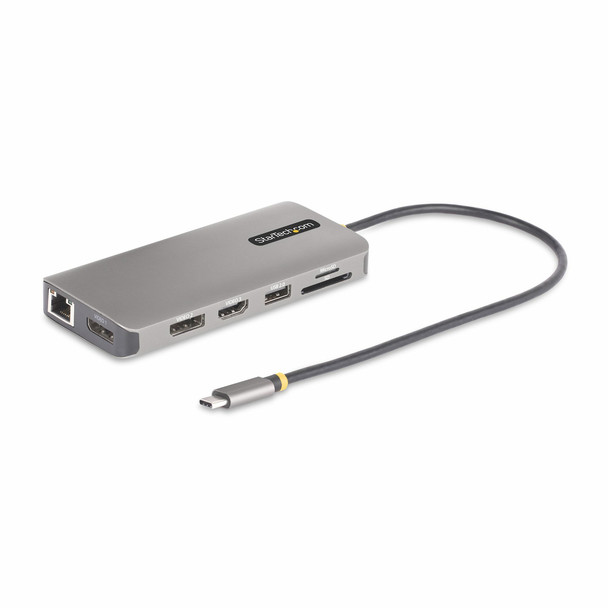

StarTech.com USB-C Triple-Monitor Multiport Adapter Dual 4K 60Hz + 4K 30Hz HDMI 154B-USBC-MULTIPORT

Create a workstation wherever you work with multiple displays, multiple USB ports, Gigabit Ethernet, and an SD slotThis USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three displays. The USB-C dock provides 1x HDMI, 2x DisplayPort, a 4-Port USB Hub, SD and Micro SD Card Reader and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4TM port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 1 ft. (30 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.High-Performance Triple Video via MSTThe USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 30Hz and 2x 4K (3840 x 2160p) at 60Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features one HDMI 2.0b port and two DisplayPort 1.4 ports, providing a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.Connect USB PeripheralsThe USB-C to USB 3.2 Gen 1 (5Gbps) hub features four USB-A ports (2x USB 5Gbps, 1x USB 2.0) for connecting USB HID devices and/or peripherals (e.g., storage devices).Extra Long Cable & Durable BuildThe mini docking station features a built-in 1 ft. (30 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. It also features a durable aluminum housing.Built-In SD/MicroSD Card ReadersAccess your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHCTM / SDXCTM or microSD (uSD) memory cards.100W Power DeliveryConnect a USB-C power adapter to the pass-through port in order to charge the host laptop supporting 100W USB Power Delivery pass-through with 15W reserved for adapter & up to 85W for host laptop charging.Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:Advanced Windows Layout Utility : To setup and save custom windows layouts.MAC Address Pass-Through Utility : To improve network security.USB Event Monitoring Utility : To track and log connected USB devices.Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage

Features


HIGH PERFORMANCE TRIPLE 4K: Driverless setup (no drivers required); provides a combination of 2x DisplayPort 1.4 & 1x HDMI 2.0b outputs; 4-port USB-A Hub (2x USB 5Gbps, 2x USB 2.0); Gb Ethernet; 3.5mm headset port; SD/MicroSD reader; 100W PD Pass-Through


FLEXIBLE MULTIMONITOR OUTPUT: Triple, Dual, or Single monitors up to 2x 4K 60Hz and 1x 4K 30Hz (Intel 11th Gen or later with DSC required for max performance); Utilizes integrated or discrete laptop GPU for uncompressed video and low CPU usage


EXTRA LONG CABLE & DURABLE BUILD: Built-in 1ft (30cm) host cable features high-quality TPE jacket & strain relief for enhanced durability & longevity; Rugged aluminum housing; 4-Port USB Type-A Hub; SD/MicroSD reader provides direct access to memory cards


COMPATIBILITY: Travel Docking Station for USB-C, USB4, TB3 and TB4 computers running Windows & ChromeOS; Features 100W PD pass-through with 15W reserved for adapter & up to 85W for host laptop charging; Works w/DP 1.2 Alt Mode at lower resolutions


OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout



Weight & dimensions


Height
mm


Width

56 mm


Depth
0 mm


Weight
6 g



Packaging content


Quick start guide

Yes



Logistics data


Master (outer) case width

320 mm


Master (outer) case height

220 mm


Products per master (outer) case

24 pc(s)


Master (outer) case length

380 mm



Network


Wake-on-LAN ready

Yes


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Ethernet LAN data rates
,100,1000 Mbit/s



Other features


Chipset

VIA - VL102, VIA - VL817, Synaptics - VMM5320, Realtek - RTL8153, Solid State System - SSS1700, Genesys Logic - GL823K



Software


Other operating systems supported

ChromeOS



Operational conditions


Operating temperature (T-T)

0 - 70 °C


Operating relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-10 - 70 °C



Ports & interfaces


USB Power Delivery

Yes


USB Power Delivery revision

3.0


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C


DisplayPort version

1.4


Headphone outputs

1


DisplayPorts quantity

2


USB 3．2 Gen 1 (3．1 Gen 1) Type-C ports quantity

1


USB Power Delivery up to
0 W


Connectivity technology

Wired


HDMI ports quantity

1


USB 3．2 Gen 1 (3．1 Gen 1) Type-A ports quantity

1


USB Type-C DisplayPort Alternate Mode

Yes


HDMI version

2.0b


Combo headphone/mic port

Yes


USB 2．0 ports quantity

2



Performance


Data transfer rate

5 Gbit/s


Maximum digital resolution

3840 x 2160 pixels


Maximum refresh rate

60 Hz


Compatible memory cards

MicroSD (TransFlash), SD


Product colour

Grey


Card reader integrated

Yes


Housing material

Aluminium, Plastic


HD type

4K Ultra HD


Number of displays supported

3


LED indicators

Activity


UASP support

Yes



Power


USB cable length

0.3 m


Power consumption (typical)
W


Power source type

USB



Packaging data


Package height

30 mm


Package depth
2 mm


Package width
0 mm


Package weight
0 g
