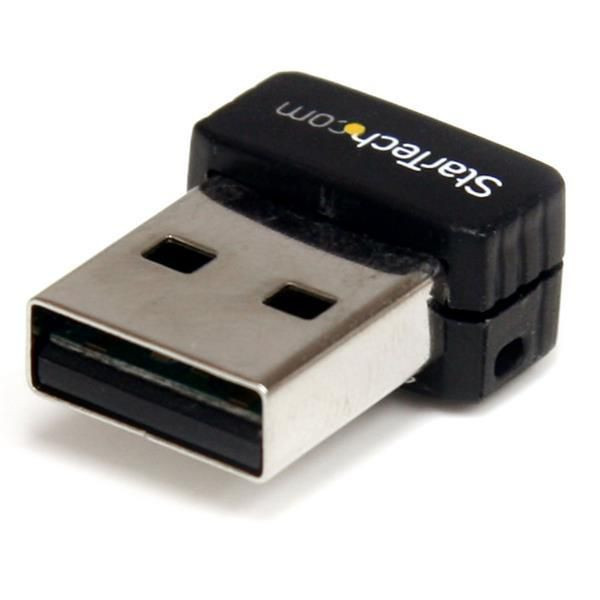

StarTech.com USB150WN1X1 USB WIRELESS N NETWORK ADAPTER USB150WN1X1

The USB150WN1X1 USB 802.11N Mini Wireless Network Adapter allows almost any USB-enabled desktop, laptop or netbook computer system to connect to 'n', 'g' or 'b' wireless networks. Using a 1T1R (1 Transmitter/1 Receiver) design over the 2.4GHz frequency in an extremely compact form factor, the USB adapter is capable of reaching up to 150Mbps over an 802.11n network while taking up minimal space.

Backward compatible with 802.11b/g networks (11/54Mbps), this adapter is a versatile wireless networking solution. With support for standard and advanced security options such as WEP, WPA, as well as wireless Quality of Service (QoS) support, and quick and easy setup through WPS, this USB 2.0 adapter is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech.com Advantage
- Compatible with 802.11b/g/n Wi-Fi networks and a small form factor, delivers a versatile, portable wireless networking solution.

Design



Certification



CE, FCC, REACH


Chipset



Realtek - RTL8188EUS


Component for



PC/Laptop


Internal



No


Mean time between failures (MTBF)



44000 Hour


Plug and Play



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



85176990


Network



Full duplex



Yes


Maximum data transfer rate



150 Mbit/s


Maximum indoor range



100 m


Maximum operating distance



300 m


Maximum outdoor range



300 m


Networking standards



IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Security algorithms



128-bit WEP, 64-bit WEP, TKIP, WPA, WPA-AES, WPA2


Top Wi-Fi standard



Wi-Fi 4 (802.11n)


Wi-Fi



Yes


Wi-Fi band



Single-band (2.4 GHz)


Wi-Fi standards



802.11b, 802.11g, Wi-Fi 4 (802.11n)


WLAN data transfer rates supported



11, 54, 150


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 75 �C


Other features



Housing material



Plastic


Package dimensions



Depth (package,cm)



17.2 cm


Gross Weight (Package, kg)



0.042 kg


Height (package,cm)



1.4 cm


Width (package,cm)



11.1 cm


Packaging content



Manual



Yes


Packaging data



Drivers included



Yes


Ports & interfaces



Connectivity technology



Wireless


Host interface



USB


Interface



WLAN


USB version



2.0


Power



Output voltage



5 V


USB powered



Yes


Product dimensions



Net Weight (Product, kg)



0.01 kg


Product Depth



1.9 cm


Product Height



0.8 cm


Product Width



1.5 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks


Server operating systems supported



Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019


Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Vendor information



Brand Name


StarTech.com


Warranty



1 Year(s)
