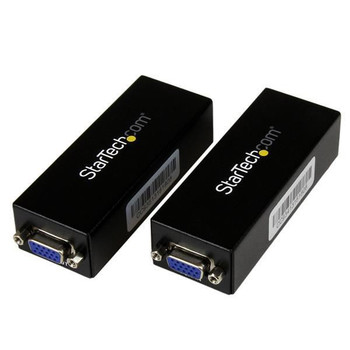

StarTech.com VGA Video Extender over Cat 5 Point to Point UTPE Series ST121UTPEP

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.
- Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
- Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation

Features


Consists of 1 Base unit and 1 Remote unit for the remote display


Extends video cables by up to 250 ft. (150m) using Cat 5 cabling


Mounting bracket included


Pure hardware design, no software or drivers required



Weight & dimensions


Height

25 mm


Width

138 mm


Depth

100 mm


Weight

263 g



Packaging content


Mounting brackets included

Yes


Cables included

VGA


Manual

Yes


AC adapter included

Yes


Included power plug types

AU, EU, NA, UK



Technical details


Sustainability certificates

RoHS



Features


Cable types supported

Cat5


Type

AV transmitter & receiver


Maximum resolution

1920 x 1200 pixels


Supported graphics resolutions

1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)


Product colour

Black


Material

Aluminium


Maximum transfer distance

80 m


Certification

CE, FCC, REACH, TAA


Plug and Play

Yes


Daisy chain

No



Ports & interfaces


RJ-45 output ports

1


RJ-45 input ports

1


DC-in jack

Yes


VGA (D-Sub) output ports

1


VGA (D-Sub) input ports

1



Power


External power adapter

Yes


Power consumption (typical)

7.2 W


Power plug type

Type M


Operating voltage

12 V


Output current

0.6 A



Packaging data


Package height

60 mm


Package depth

315 mm


Package width

140 mm


Package weight

795 g
