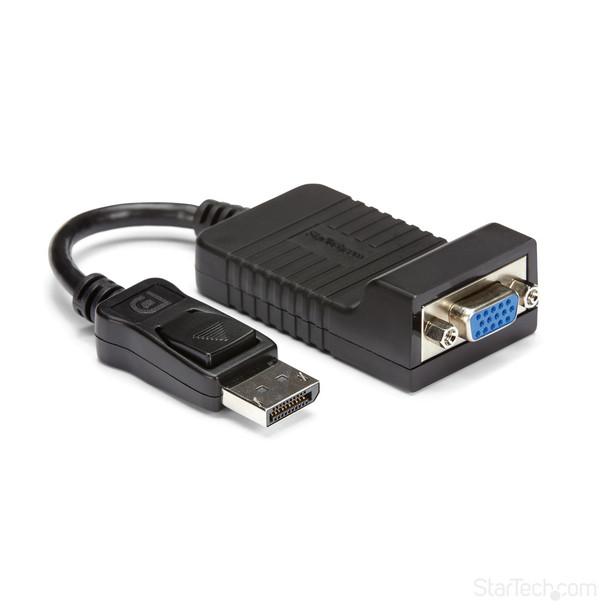

Startech DP2VGA DisplayPort to VGA Adaptor - Black DP2VGA

Connect your VGA monitor to a DisplayPort equipped computerThe StarTech.com DP2VGA DisplayPort to VGA adapter lets you connect a VGA computer monitor to a DisplayPort video card or other DisplayPort source, eliminating the expense of upgrading the monitor for compatibility.The DP to VGA adapter uses an integrated chip to provide an active digital to analog conversion.Backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

Features


DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display / 3" (8cm) attached cable


COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations


CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using the DP to VGA display adapter; Durable housing makes it ideal for travel to & from office/home /Tested w/ VGA cables up to 25'


LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection / EMI shielding protects from line noise/distortion


EASY TO USE: With no software or drivers required, the DP to VGA adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female video adapter dongle



Weight & dimensions


Weight

68 g



Logistics data


Master (outer) case width

498 mm


Master (outer) case height

234 mm


Products per master (outer) case

90 pc(s)


Harmonized System (HS) code

84733080


Master (outer) case length

332 mm



Sustainability


Sustainability certificates

CE, RoHS



Features


Maximum resolution

2048 x 1280 pixels


DisplayPort version

1.2


Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280


Maximum refresh rate

60 Hz


Cable length

0.08 m


Product colour

Black


Connector 2

VGA (D-Sub)


Connector 1

DisplayPort


Connector 1 gender

Male


Connector 2 gender

Female


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Converter type

Active video converter



Packaging data


Package height

192 mm


Package depth

216 mm


Package width

12 mm


Package weight

72 g
