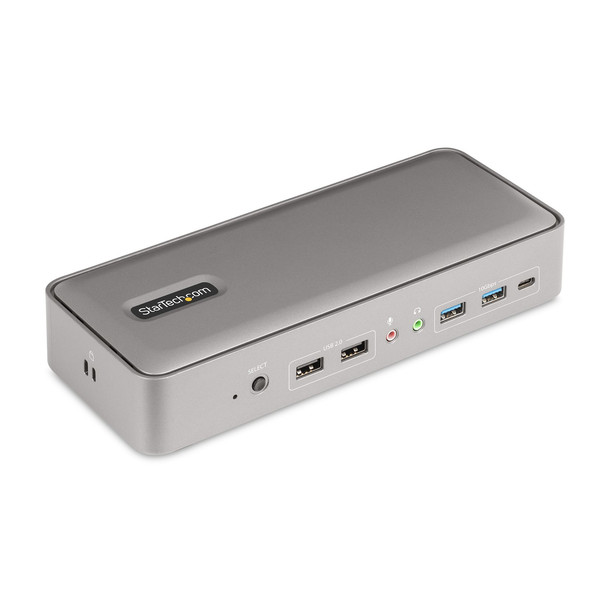

Startech Dual-Laptop USB-C KVM Docking Station Dual Monitor 4K 60Hz DisplayPort 129UE-USBC-KVM-DOCK

Share a dual 4K 60Hz workstation between two laptop computers through a USB Type-C connectionDock and Switch between two laptops to access your workstation peripherals including dual monitors, seamlessly switching between laptop computers with the push of a button. The downloadable Hot-Key software (available for Windows and macOS), enables users to switch between computers using key combinations from their keyboard. The KVM dock is ideal for work-from-home applications where users can access their business and personal computer from the same workstation.DisplayLink CertifiedThe dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS. The KVM dock makes it possible to use distinct operating systems on the connected host devices, enabling you to operate and switch, for instance, between a Windows and a Mac laptop. DisplayLink technology also supports extended dual displays on Apple M1/M2 MacBook which are not natively capable of driving more than one external display. The DisplayLink Certification guarantees easy connectivity to the docking station and a multi-display setup with support for resolutions up to 4K 60Hz on both external displays. Perfect for software developers and IT technicians who require access to multiple platforms for testing, or content creators using more than one system for different tasks.Simultaneously charge two laptopsThe KVM docking station supports Power Delivery 3.0 and charges both connected computers over USB-C. The dock supplies 90W of power to the active host computer and 45W of power to the second PC. This ensures that both laptops can be charged simultaneously and quickly, making it easy for users to keep their devices powered up throughout the day. The Power Delivery feature eliminates the need for separate charging cables, reducing clutter on the desk and simplifying the workspace.Full-Featured Docking StationConnect two USB-C computers to this docking station to access a wide range of port connectivity, options and features from both computers. The docking station features: - 2x DisplayPort ports for dual display output with support for resolutions up to dual 4K 60Hz.- 2x USB-A (USB 2.0 480Mbps) HID ports for USB devices, such as a keyboard and mouse.- 2x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) ports for connecting high speed USB peripherals, such as SSD storage.- 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.- 1x 3.5mm 3-position TRRS jack for stereo audio output.- 1x 3.5mm 2-position microphone jack for mono audio input.- 2x K-Slots (regular/nano) to tether the dock with a cable lock (sold separately) for security.This dock is designed with a mounting pattern that enables it to be mounted when paired with StarTech.com mounting accessories (sold separately). With our mounting accessories, the dock can easily be attached to the VESA pattern on the back of a monitor or to any flat surface, providing a clutter-free workspace. The mounting pattern ensures a secure fit, and the accessories are easy to install. The following mounts are compatible with this product:- SSPMSUDWM - Docking Station Surface Mount- SSPMSVESA - Docking Station VESA MountEnhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:�Advanced Windows Layout Utility : Setup and save custom windows layouts.�Mac Address Pass-Through Utility : Improve network security.�USB Event Monitoring Utility : Track and log connected USB devices.�Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

Features


DUAL-LAPTOP KVM DOCK: Dock and Switch between two laptops at your desk / workstation and share dual 4K 60Hz monitors, keyboard, mouse and other USB peripherals; Switch between two laptops using a toggle button located on the front of the docking station


SIMULTANEOUSLY CHARGE TWO LAPTOPS: USB-C KVM docking station charges both connected laptops over USB-C (PD 3.0); The included 180W power adapter automatically provides 90W of power to the active host and 45W of power to the host on standby


GUARANTEED COMPATIBILITY: DisplayLink Certified Dual-Host KVM Dock supports dual displays on M1/M2 MacBooks; Works w/mixed operating systems (combine Windows, MacOS or Chrome OS); Works w/USB-C, Thunderbolt 4/3 & USB-A laptops (USB-C to A cable not incl)


CONNECTIVITY: The dock features a variety of ports for device connectivity; 2x USB 2.0 Type-A HID, 2x USB-A (10Gbps), USB-C (10Gbps), 2x DisplayPort, 2x USB-C host ports, Gigabit Ethernet, 3.5mm stereo audio, 3.5mm mic, 2x K-Slots (Standard/Nano)


OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout



Ports & interfaces


Number of computers controlled

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

3


Audio connections

Yes


DisplayPort version

1.4


Keyboard port type

USB


Headphone outputs

1


Number of microphone inputs

1


Mouse port type

USB


DisplayPorts quantity

2


Video port type

DisplayPort


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


DC-in jack

Yes



System requirements


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Linux operating systems supported

Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04



Design


Cable lock slot

Yes


Product colour

Silver


Housing material

Plastic


LED indicators

LAN, Power



Weight & dimensions


Height

40 mm


Width

90 mm


Depth

224 mm


Weight

402 g



Packaging content


Cables included

AC, USB Type-C


Quick installation guide

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

395 mm


Master (outer) case height

340 mm


Products per master (outer) case

6 pc(s)


Master (outer) case length

380 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Ethernet LAN

Yes


Ethernet LAN (RJ-45) ports

1


Cabling technology

10/100/1000Base-T(X)



Operational conditions


Operating temperature (T-T)

-10 - 45 �C


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 60 �C



Performance


Chipset

DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F


Maximum resolution

3840 x 2160 pixels


HD type

4K Ultra HD



Power


AC input voltage

100 - 240 V


USB Power Delivery

Yes


External power adapter

Yes


Output voltage

20 V


Power consumption (typical)

180 W


Input current

2.4 A


USB Power Delivery up to

90 W


Compatible power plug types

EU, UK


Output current

9 A



Display


Built-in display

No



Packaging data


Package height

90 mm


Package depth

285 mm


Package width

160 mm


Package weight

1.8 kg
