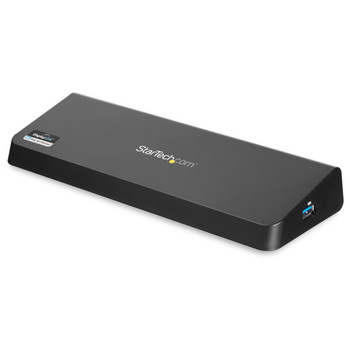

Startech Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor U USB3SDOCKHDV

Laptop Docking Station | USB 3.0 | TAA Compliant | Mac & Windows

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

HDMI + VGA

HDMI + DVI

Integrated USB Hub

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

The StarTech.com Advantage

- Save time by connecting multiple peripherals through a single cable
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports

Features


UNIVERSAL DUAL MONITOR DOCKING STATION: USB 3.0 docking station features HDMI, VGA, and DVI outputs for broad display compatibility; Supports up to 1920x1080 (HDMI), 1920x1200 (DVI-D), and 2048x1152 (VGA); This dual monitor dock is TAA compliant


INCREASED PRODUCTIVITY: This dual monitor docking station combines 3x USB 3.2 Gen 1 (5Gbps) ports, headphone & mic audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock; Connect directly to older VGA and DVI monitors without adapters


VERSATILE DESIGN: The high performance dock features a sleek design that is the ideal addition to any home or office workstation; This dock enhances your laptop's capabilities while taking up little desk space; Includes 3ft (0.9m) USB 3.2 Gen 1 host cable


UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook


CONNECTIVITY TOOLS: Optimize the performance and security of this docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)



Weight & dimensions


Height

44 mm


Width

178 mm


Depth

304 mm


Weight

295 g



Packaging content


Cables included

USB


Manual

Yes


Drivers included

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

215 mm


Master (outer) case height

345 mm


Products per master (outer) case

6 pc(s)


Master (outer) case length

435 mm


Harmonized System (HS) code

84733020



Sustainability


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Auto MDI/MDI-X

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


USB data transfer rates

12,480,5000 Mbit/s


Chipset

DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E



Software


Mac compatibility

Yes


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-10 - 60 �C



Ports & interfaces


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

3


Microphone in

Yes


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B


VGA (D-Sub) ports quantity

1


Headphone outputs

1


DC-in jack

Yes


Connectivity technology

Wired


DVI-D ports quantity

1



Performance


Data transfer rate

5 Gbit/s


Cable lock slot type

Kensington


Cable lock slot

Yes


Maximum digital resolution

1920 x 1200 pixels


Product colour

Black


Card reader integrated

No


Maximum analog resolution

2048 x 1152 pixels


Housing material

Plastic


Certification

FCC, CE, TAA, REACH



Power


AC input voltage

100-240 V


Output voltage

5 V


Power consumption (typical)

20 W


Power plug type

Type B


Input current

0.9 A


Compatible power plug types

AU, EU, UK, US


Output current

4 A



Packaging data


Package height

66 mm


Package depth

296 mm


Package width

195 mm


Package weight

878 g
